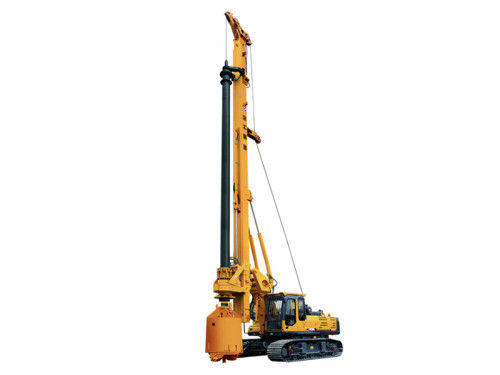

Hydraulic XCMG Rotary Piling Machine 56M Drilling Depth
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG piling rig machine |
| Model Number: | XR150DⅢ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | Standard export cartons |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100sets/month |
|
Detail Information |
|||
| Name: | XR150DⅢ XCMG Rotary Piling Machine | Power: | 450KW |
|---|---|---|---|
| Rated Voltage: | 380/220V | Frequency: | 50Hz |
| Rated Speed: | 1500RPM | Prime Power: | 560kva |
| High Light: | Rotary Piling Machine 56M,Hydraulic XCMG Rotary Piling Machine,56M Hydraulic Piling Machine |
||
Product Description
Hydraulic XCMG Rotary Piling Machine 56M Drilling Depth
1, XCMG Rotary Piling Machine adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2, XCMG Rotary Piling Machine adopts the Cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3, With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
4, Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
5, The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
6, The optional centralized lubrication system, maintenance more convenient.
7, Several drilling rod configurations with different specification are available for efficient construction on different layers.
Parameters
|
Description |
Unit |
Parameter value |
|
|
Max. drilling diameter |
mm |
1500 |
|
|
Max. drilling depth |
m |
56 |
|
|
Allowable luffing scope (from center of drill rod to slewing center) |
mm |
3250～3650 |
|
|
Drilling rig dimension in working condition (L × W × H) |
mm |
7550×4200×19040 |
|
|
Drilling rig dimension in transport condition (L × W × H) |
mm |
13150×2960×3140 |
|
|
Weight of overall unit (standard configuration, excluding drilling tool) |
t |
49 |
|
|
Engine |
Model |
|
CUMMINS QSB7 |
|
Rated power/speed |
kW |
150/(2050r/min) |
|
|
Max. working pressure of hydraulic system |
MPa |
35 |
|
|
Rotary drive |
Max. torque |
kN •m |
150 |
|
Rotational speed |
r/min |
7～33 |
|
|
Crowd cylinder |
Max. Pushing force |
kN |
120 |
|
Max. Pulling force |
kN |
160 |
|
|
Max.stroke |
mm |
3500 |
|
|
Main winch |
Max.pulling force |
kN |
160 |
|
Max. single-rope speed |
m/min |
72 |
|
|
Diameter of the steel wire rope |
mm |
26 |
|
|
Auxiliary winch |
Max.pulling force |
kN |
50 |
|
Max. single-rope speed |
m/min |
60 |
|
|
Diameter of the steel wire rope |
mm |
16 |
|
|
Drilling mast |
Left/right inclination of mast |
° |
3/3 |
|
Front/back inclination of mast |
° |
5/15 |
|
|
Rotary table slewing angle |
° |
360 |
|
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
2.1 |
|
Max. climbable gradient of the overall unit |
% |
40 |
|
|
Crawler |
Width of crawler plate |
mm |
700 |
|
External width of crawler (min.-max.) |
mm |
2960～4200 |
|
|
Center distance between two longitudinal wheels of crawler |
mm |
4310 |
|
|
Average ground pressure |
kPa |
83 |
|
