XCMG Official Xr130e Pile Driver Mini Borehole Rotary Drilling Rigs
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XR130E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | XCMG | Model: | XR130E |
|---|---|---|---|
| Overall Weight: | 43ton | Production Capacity: | 10000 Units/Year |
| Specification: | 7546*3600*17724mm | Max. Output Torque: | 130kn/M |
| High Light: | ISO 14396 Construction Machine,320GC Construction Machine,20Tons second hand excavators |
||
Product Description

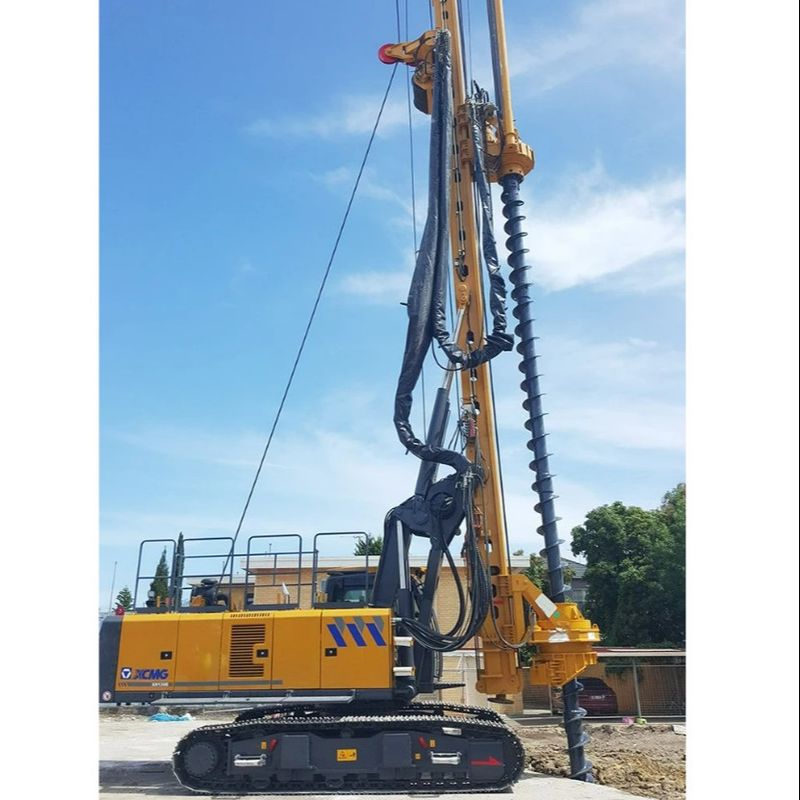

XCMG Official Xr130e Pile Driver Mini Borehole Rotary Drilling Rigs
1. The special hydraulic telescopic crawler chassis and large-diameter slewing bearing are adopted for rotary drilling rigs, which meet the requirements of super stability and convenient transportation. The super-long wheel base has stronger adaptability to the formation.
2. The whole machine is transported with a pole, the transport width is only 2.5 meters, the transport height is only 3.5 meters, the transport weight is light, and the use is more convenient.
3. The output speed of the working end of the power head, main and auxiliary coils is high, and the construction efficiency is more efficient.
4. Reliable performance, high cost performance, more expansion functions, and greater choice.
5. It adopts Guangxi Cummins electronically controlled turbocharged engine, which has strong power and the emission meets the Euro III emission standard. Imported Cummins engine is optional.
6. The Kawasaki hydraulic system is adopted, which is more reliable, and a number of mature technologies of XCMG are applied at the same time.
7. Adopt CAN bus full electric control technology, which simplifies the hydraulic pipeline, improves the reliability of the whole vehicle, and fully embodies the integration of man, machine, hydraulic and electricity.
8. A variety of drill pipe configurations are available for selection to meet the efficient construction of different formations.
9. Optional functions such as oil cylinder pressurization, winch pressurization, casing drive, and long spiral can meet various needs of customers.
|
Type
|
Unit
|
Parameter
|
|
|
Max. drilling diameter
|
m
|
1.5
|
|
|
Max. drilling depth
|
m
|
50
|
|
|
Engine
|
Model
|
/
|
QSB7-C227
|
|
Power
|
kW
|
169
|
|
|
Rotary drive
|
Max. output torque
|
kN.m
|
130
|
|
Rotary speed
|
r/min
|
8-35
|
|
|
Crowd cylinder
|
Max. pull-down piston push
|
kN
|
120
|
|
Max. pull-down piston pull
|
kN
|
140
|
|
|
Max. pull-down piston stroke
|
m
|
3.5
|
|
|
Crowd winch
|
Max. pull-down piston push
|
kN
|
200
|
|
Max. pull-down piston pull
|
kN
|
200
|
|
|
Max. pull-down piston stroke
|
m
|
11
|
|
|
Main winch
|
Max. pulling force
|
kN
|
140
|
|
Max. speed
|
m/min
|
75
|
|
|
Diameter of the steel wire rope
|
mm
|
50
|
|
|
Auxiliary winch
|
Max. pulling force
|
kN
|
70
|
|
Max. speed
|
m/min
|
70
|
|
|
Mast inclination
|
Lateral/ forwards/ backwards
|
°
|
±3/5/15
|
|
Undercarrige
|
Max. traveling speed
|
km/h
|
2.7
|
|
Max. grade ability
|
%
|
40
|
|
|
Min. clearance
|
mm
|
345
|
|
|
Track shoe width
|
mm
|
600
|
|
|
Distance between tracks
|
mm
|
2500-3600
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
35
|
|
Overall weight
|
Max. traveling speed of the overall unit
|
t
|
43
|
|
Dimension
|
Working condition
|
mm
|
7546*3600*17724
|
|
Transportation condition
|
mm
|
14097*2500*3500
|
|
