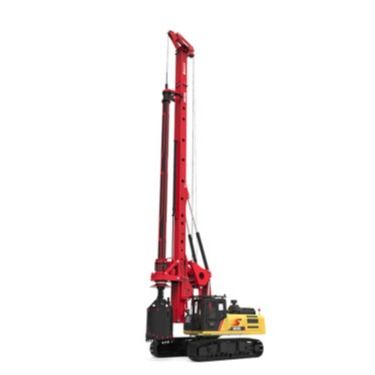

SR205 S Sany Drilling Rig Piling Work 1.8m Construction Piling Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | Sany |
| Certification: | CE、ISO9001 |
| Model Number: | SR205-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Maximum Borehole Diameter: | 1.8 M | Maximum Drilling Depth: | 64/51 M |
|---|---|---|---|
| Total Weight Of Equipment: | 63000 Kg | Engine Rated Power: | 212 KW |
| High Light: | SR205 S sany drilling rig,sany drilling rig piling work,1.8m construction piling machine |
||
Product Description

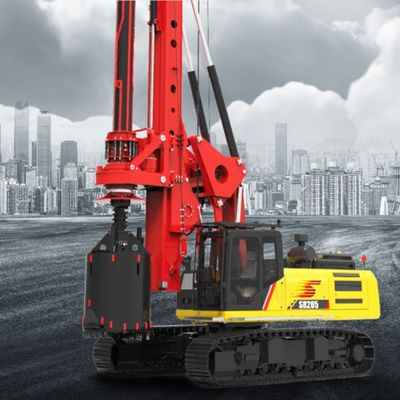

Sany Heavy Industry SR205-S rotary drilling rig performance characteristics
SR205 is applied to the field of small hole and deep pile in civil and industrial construction foundation and municipal construction. It has the characteristics of fast soil beating, fast rotation and fast soil unloading for the geology of silt, clay and hard soil.
Key Features:
Pump, valve, engine and other core components, the use of joint design, manufactured by the world famous manufacturers to ensure excellent quality, to meet the three - - customers
And other professional needs.
SR205 is applied to the field of small hole and deep pile in civil and industrial construction foundation and municipal construction. It has the advantages of fast soil breaking and fast soil breaking for silt, clay and hard soil.
Fast rotation, fast unloading characteristics.
Product Features
Rapid construction
Optimize the vehicle hydraulic and control system to improve drilling efficiency and control
Winch speed and power head speed, to achieve rapid construction work.
Economy and energy saving
Equipped with market proven engine, durable; Trinity power
Control technology, so that the power real-time adjustment distribution, action response speed,
Low fuel consumption.
High reliability
Mast, luff and other structural parts with high design standards, through the test system test,
No cracking, no deformation, reduce maintenance costs.
Intelligent control
10 HD touch display, sensitive response, simulation drilling animation,
More convenient operation; The APP can monitor the running state of the equipment in real time.
Engineering quantity, but also a key service call and cluster management.
Convenient maintenance
Open door design, large maintenance space; Increase the reducer discharge pipe,
Easy maintenance oil change; Special electric control cabinet design, centralized maintenance
Sany SR205-S rotary drilling rig parameter configuration
Sany SR205-S rotary drilling rig technical parameters
| drilling | |
| Maximum bore diameter | 1800mm |
| Maximum drilling depth (friction rod/lock rod) | 64/51m |
| Power engine head | |
| Rated output torque | 205kN·m |
| speed | 5~34.5rpm |
| Pressurization system | |
| Add pressure | 180kN |
| Pull up force | 180kN |
| trip | 4200mm |
| Main winding lift | |
| Force of lifting | 200kN |
| Diameter of wire rope | 28mm |
| Maximum speed | 75m/min |
| Secondary roll up | |
| Force of lifting | 80kN |
| Diameter of wire rope | 20mm |
| Maximum speed | 75m/min |
| Angle of mast | |
| Before/after | 5/90° |
| Left/right | ±3° |
| chassis | |
| Model of engine | 6HK1 |
| Power of engine | ISUZUkW/rpm |
| emissions | COMⅢ |
| displacement | 7.79L |
| Spread width of chassis | 4150mm |
| Width of track | 700mm |
| Tail radius of rotation | 3805mm |
| The host | |
| Height of machine | 21040mm |
| Working weight | 63t |
| Width of transport | 3210mm |
| Height of transport | 3560mm |
Our Services
Why Choose Us?
1. We are a professional and reliable supplier of Construction Piling Machine in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
