XCMG XR360 Used Screw Pile Machine 92m Bore Bore Pile Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | XCMG |
| Certification: | CE、ISO9001 |
| Model Number: | XR360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Screw Pile Machine | Brand: | XCMG |
|---|---|---|---|
| Model: | XR360 | Max. Drilling Diameter: | 2500 Mm |
| Max. Pile Depth: | 92M | Overall Drilling Weight: | 90Ton |
| High Light: | XCMG screw pile machine,XR360 screw pile machine,92m bore pile machine |
||
Product Description
Used XCMG XR360 Screw Pile Machine 92m Bore
XCMG XR360 Screw Pile Machine Quick Details
XCMG XR360 Screw Pile Machine Parameters
|
Description
|
Unit
|
Parameter value
|
|
|
Max. drilling diameter
|
mm
|
2500
|
|
|
Max. drilling depth
|
m
|
92
|
|
|
Working condition (L × W × H)
|
mm
|
11000×4800×24586
|
|
|
Transport condition (L × W × H)
|
mm
|
17380×3500×3810
|
|
|
Weight of overall unit (standard configuration, excluding drilling tool)
|
t
|
92
|
|
|
Engine
|
Model
|
|
QSM11-C400
|
|
Rated power/speed
|
kW
|
298
|
|
|
Rotary drive
|
Max. torque
|
kN.m
|
360
|
|
Rotational speed
|
r/min
|
7～20
|
|
|
Pull-Down Cylinder
|
Max. pull- down piston push
|
kN
|
240
|
|
Max. pull- down piston pull
|
kN
|
250
|
|
|
Max. pull- down piston stroke
|
m
|
6
|
|
|
Main Winch
|
Max. pulling force
|
kN
|
320
|
|
Max. line speed
|
m/min
|
72
|
|
|
Auxiliary Winch
|
Max. Pulling force
|
kN
|
100
|
|
Max. line speed
|
m/min
|
65
|
|
|
Undercarrige
|
Max. traveling speed
|
km/h
|
1.5
|
|
Max. grade ability
|
%
|
35
|
|
|
Min. Clearance
|
mm
|
445
|
|
|
Track shoe width
|
mm
|
800
|
|
|
Distance between tracks
|
mm
|
3500 ~ 4800
|
|
|
Hydraulic System
|
Working pressure
|
Mpa
|
35
|
XCMG XR360 Screw Pile Machine Performance Characteristics:
1. The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported Cummins turbo-supercharged engine (meeting EUIII standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best. 2. The main and auxiliary hydraulic systems are all adopt the technique of load sensor, which can increase the efficiency of hydraulic system and save energy. It uses heavy load hydraulic units to satisfy the all kinds operating status of drill. 3. The patented parallelogram hinge mechanism enlarges the work area. 4. Independent intellectual property rights of the intelligent control system, the application of CAN bus and the PLC control system, including the automatic and manual adjustment of the perpendicularity of the drill mast, the automatic display of the drilling depth, rotary automatic positioning control and the intellectual fault diagnosis control.

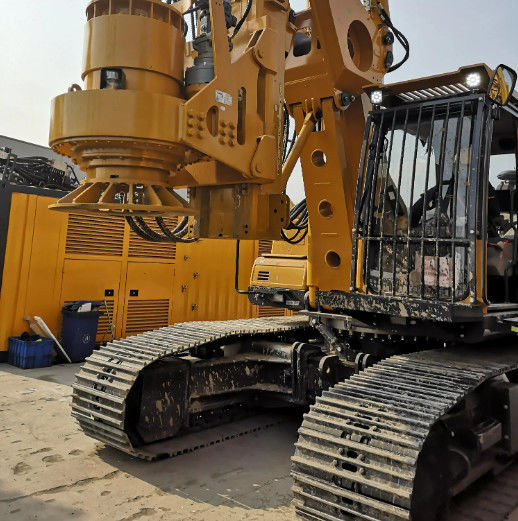

XCMG XR360 Screw Pile Machine Pictures
