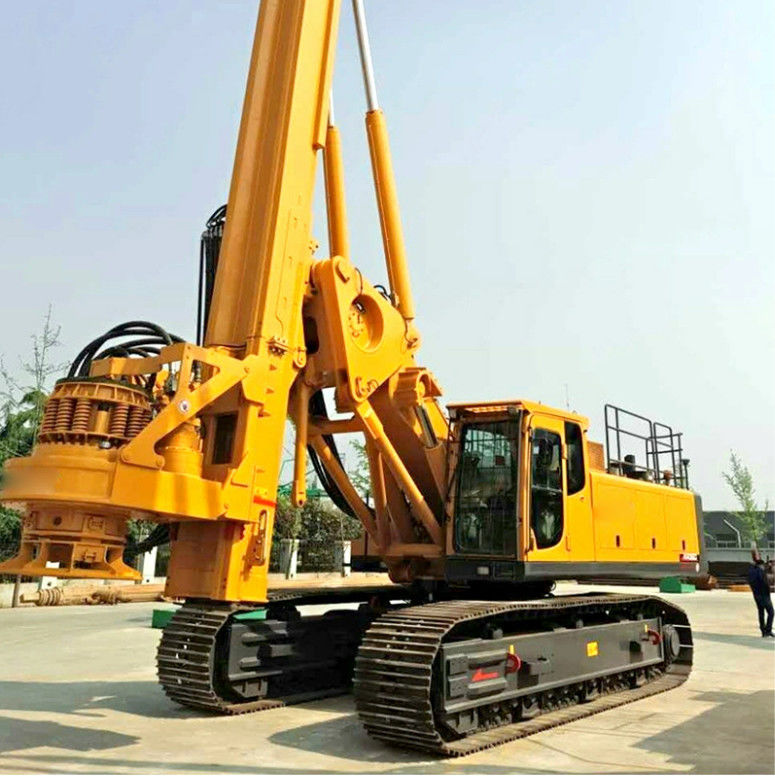

44m Xr120d Hydraulic Conventional Piling Rig Luffing Support
Product Details:
| Place of Origin: | China |
| Model Number: | xr120d |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Power: | 112kw | Model: | Xr120d |
|---|---|---|---|
| Maximum Output Torque Of Power Head: | 120kn.M | Specification: | 12580*3400*3360mm |
| HS Code: | 8430691100 | Drilling Pipe: | 377mm |
| High Light: | 44m Conventional Piling Rig,Xr120d Conventional Piling Rig,44m rotary foundation drill rig |
||
Product Description
44m Xr120d Hydraulic Rotary Drilling Rig
The XR120D rotary drilling rig has a backward tilting large triangle structure and fixed luffing support, which is convenient for transportation and at the same time improves the rigidity of the working mechanism and enhances the working stability of the whole machine, which is suitable for the working conditions of small tonnage drilling rigs; imported Kawasaki hydraulic parts, the power system is reasonably matched , high construction efficiency; imported Cummins engine, optional two throttle control methods, so that your fuel consumption can be minimized; the working range of the auxiliary winch is enlarged, which can meet the hoisting of light and small objects and save the cost of auxiliary equipment; the main roll Yang adopts a large-displacement motor design, which is more sensitive in response and more reliable in work, and it is no longer difficult to unload soil in small-diameter pile holes.
|
Project
|
Unit
|
Parameter
|
|
Uncased
|
(mm) |
φ1300 |
|
Max.Drilling Depth
|
(m)
|
44
|
|
Working condition L × W × H
|
(mm) |
7175×3400×16800 |
|
Transportation condition L × W × H
|
(mm)
|
12580×3400×3360
|
|
Overall Drilling Weight
|
(t)
|
40
|
|
Model
|
- |
/ |
|
Rated Power
|
(kW)
|
112/1950
|
|
Working pressure
|
(MPa) |
32 |
|
Max. output torque
|
(kN.m) |
120 |
|
Rotary speed
|
(r/min)
|
6~28
|
|
Max.pull-down piston push
|
(kN) |
120 |
|
Max.pull-down piston pull
|
(kN)
|
120
|
|
Max.pull-down piston stroke
|
(mm)
|
3500
|
|
Max.pulling force
|
(kN) |
100 |
|
Max. single-rope speed
|
(m/min)
|
70
|
|
Diameter of the steel wire rope
|
(mm)
|
24
|
|
Max. Pulling force
|
(kN) |
45 |
|
Max. single-rope speed
|
(m/min)
|
70
|
|
Diameter of the steel wire rope
|
(mm)
|
16
|
|
Left/right inclination of mast
|
(°) |
42432 |
|
Front inclination of mast
|
(°)
|
5
|
|
Rotary table slewing angle
|
(°)
|
360
|
|
Max. traveling speed
|
(km/h) |
3.2 |
|
Max.grade ability
|
(%)
|
40
|
|
Track shoe width
|
(mm) |
700 |
|
Distance between tracks
|
(mm)
|
3400
|
|
The length of crawler
|
(mm)
|
3650
|
|
Average ground pressure
|
(kPa)
|
73.6
|
