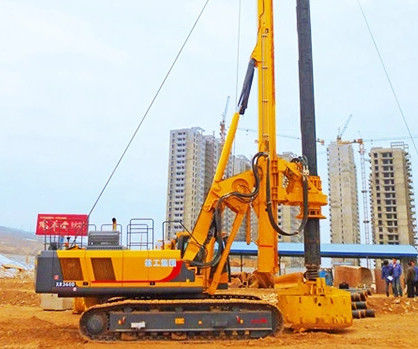

XCMG XR360 Rotary Piling Machine Core Sample Crawler Drilling Rig
Product Details:
| Place of Origin: | china |
| Brand Name: | XCMG |
| Certification: | CE、ISO9001 |
| Model Number: | XR360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Crawler Rotary Drilling Rig | Brand: | XCMG |
|---|---|---|---|
| Model: | XR360 | Max. Pile Diameter: | 2500 Mm |
| Max. Pile Depth: | 102 Meter | Overall Drilling Weight: | 90T |
| Highlight: | XCMG XR360 Rotary Piling Machine,2500mm Rotary Piling Machine,Core Sample crawler drilling rig |
||
Product Description
XCMG XR360 Crawler Rotary Drilling Rig Core Sample Drilling Rig Machine
XCMG XR360 Crawler Rotary Drilling Rig Quick Details
XCMG XR360 Crawler Rotary Drilling Rig adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability. The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve. The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability. The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users. Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency. It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.
XCMG XR360 Crawler Rotary Drilling Rig Parameters
|
XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand.
|
||
|
Max.Drilling Diameter
|
||
|
Uncased
|
(mm)
|
φ2500
|
|
Cased
|
(mm)
|
φ2200
|
|
Max.Drilling Depth
|
(m)
|
102
|
|
Dimension
|
||
|
Working condition L × W × H
|
(mm)
|
11000X4800X24586
|
|
Transportation condition L × W × H
|
(mm)
|
18880×3500×3820
|
|
Overall Drilling Weight
|
(t)
|
90
|
|
Engine
|
||
|
Model
|
-
|
CUMMINS QSM11-C400
|
|
Rated Power
|
(kW)
|
298/2100
|
|
Hydraulic System
|
||
|
Working pressure
|
(MPa)
|
33
|
|
Rotary Drive
|
||
|
Max. output torque
|
(kN.m)
|
360
|
|
Rotary speed
|
(r/min)
|
6~25
|
|
Spin off speed
|
(r/min)
|
-
|
|
Pull-Down Cylinder
|
||
|
Max.pull-down piston push
|
(kN)
|
240
|
|
Max.pull-down piston pull
|
(kN)
|
250
|
|
Max.pull-down piston stroke
|
(mm)
|
6000
|
