67M Depth Rotary Piling Machine XCMG 220 Piling Rig Machine
Product Details:
Place of Origin: | China |
Brand Name: | XCMG piling rig machine |
Model Number: | XR220D |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Negitionable |
Packaging Details: | Standard export cartons |
Delivery Time: | 30 days after receiving down payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 100sets/month |
Detail Information |
|||
Name: | XR220D XCMG Piling Rig Machine | Max. Drilling Diameter: | 2000mm |
---|---|---|---|
Max. Drilling Depth: | 67M,standard Configuration | Engine Model: | QSL-325 |
Rated Power/speed: | 242kW/(2200r/min) | Max. Torque Rotary Drive: | 220 KN •m |
High Light: | XCMG 220 Rotary Piling Machine,67M XCMG 220 Piling Rig Machine,XCMG 220 Rotary Piling Machine |
Product Description

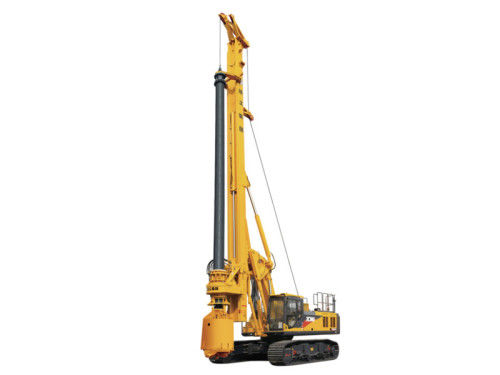

67M Depth Rotary Piling Machine XCMG 220 Piling Rig Machine
XCMG 220 Piling Rig Machine Technical Characteristics:
1. The machine adapt single row rope for main winch to figure out the wear of steel rope. and extend the life-span.
2. With infrared camera for observing main winch, Manipulator can observe the state of steel rope at day and night in cab.
3. Optional configuration according to customers' requirement Excellent expansibility.
4. dopting the imported supercharged CUMMINS engine with European III effluent standard. Meet environmental rotection and energy conservation.
5. With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.
6. The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.
7. The complete machine has passed CE certification of TuV Rheinland group.
8. Standard centralized lubricating system, allowing easier maintenance.
XCMG 220 Piling Rig Machine Parameters
Description | Unit | Parameter value | |
Max. drilling diameter | mm | 2000 | |
Max. drilling depth | m | 67,standard configuration | |
(5-section friction Kelly bar) | |||
52,optional configuration | |||
(4-section-locking Kelly bar) | |||
Allowable luffing scope (from center of drill rod to slewing center) | mm | 3905~4800 | |
Drilling rig dimension in working condition (L × W × H) | mm | 8968×4400×22180 | |
Drilling rig dimension in transport condition (L × W × H) | mm | 16360×3250×3535 | |
Weight of overall unit (standard configuration, excluding drilling tool) | t | 76 | |
Engine | Model | QSL-325 | |
Rated power/speed | kW | 242/(2200r/min) | |
Max. working pressure of hydraulic system | MPa | 35 | |
Rotary drive | Max. torque | kN •m | 220 |
Rotational speed(Standard configuration) | r/min | 7~25 | |
Crowd cylinder | Max. Pushing force | kN | 200 |
Max. Pulling force | kN | 200 | |
Max. stroke | mm | 5000 | |
Main winch | Max. pulling force | kN | 230 |
Max. single-rope speed | m/min | 70 | |
Diameter of the steel wire rope | mm | 30 | |
Auxiliary winch | Max. pulling force | kN | 80 |
Max. single-rope speed | m/min | 60 | |
Diameter of the steel wire rope | mm | 20 | |
Drilling mast | Left/right inclination of mast | ° | 44290 |
Front/back inclination of mast | ° | 44331 | |
Rotary table slewing angle | ° | 360 | |
Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
Max. climbable gradient of the overall unit | % | 35 | |
Crawler | Width of crawler plate | mm | 800 |
External width of crawler (min.-max.) | mm | 3250~4400 | |
Center distance between two longitudinal wheels of crawler | mm | 4750 | |
Average ground pressure | kPa | 108 |
