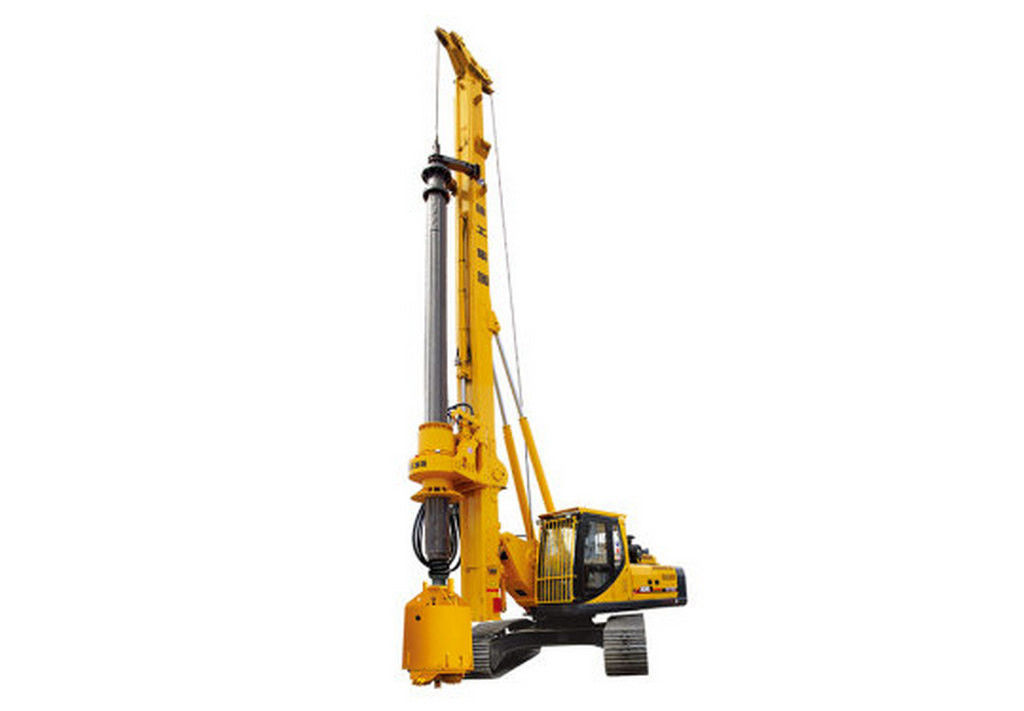

XR120D XCMG Rotary Piling Machine CUMMINS B5.9-C Engine
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | XR120D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | Standard export cartons |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100sets/month |
|
Detail Information |
|||
| Name: | XCMG XR120D | Max.Drilling Diameter: | φ1300MM |
|---|---|---|---|
| Max.Drilling Depth: | 44M | Engine: | CUMMINS B5.9-C |
| Rated Power: | 112/1950kw | Working Pressure: | 32MPa |
| High Light: | XR120D XCMG Rotary Piling Machine,CUMMINS B5.9-C Rotary Piling Machine,XR120D xcmg piling rig |
||
Product Description
XR120D XCMG Rotary Piling Machine CUMMINS B5.9-C Engine
Introduction
XR120D XCMG Rotary Piling Machine introduces the back-inclination large triangle structure with stationary luffing support, which is suitable for working conditions of low-tonnage drilling rig, improving the rigidity of working mechanism and enhancing the stability of whole drilling rig while achieving easy transportation;
1, The impor ted Kawasaki hydraulic parts can achieve reasonable powertrain matching and high construction efficiency;
2, The imported Cummins engine can minimize fuel consumption with the help of two optional accelerator control modes;
3, The working amplitude of auxiliary winch is increased, which can hoist light and small objects and save cost as well;
4, The main winch is designed with a high displacement motor, achieving more sensitive response and more reliable working and also getting rid of the difficulty in earth dumping for pile holes of small diameter;
Parameters Of XR120D XCMG Rotary Piling Machine
| Project | Unit | Parameter |
| Max.Drilling Diameter | ||
| Uncased | (mm) | φ1300 |
| Cased | (mm) | - |
| Max.Drilling Depth | (m) | 44 |
| Dimension | ||
| Working condition L × W × H | (mm) | 7175×3400×16800 |
| Transportation condition L × W × H | (mm) | 12580×3400×3360 |
| Overall Drilling Weight | (t) | 40 |
| Engine | ||
| Model | - | CUMMINS B5.9-C |
| Rated Power | (kW) | 112/1950 |
| Hydraulic System | ||
| Working pressure | (MPa) | 32 |
| Rotary Drive | ||
| Max. output torque | (kN.m) | 120 |
| Rotary speed | (r/min) | 6~28 |
| Spin off speed | (r/min) | - |
| Pull-Down Cylinder | ||
| Max.pull-down piston push | (kN) | 120 |
| Max.pull-down piston pull | (kN) | 120 |
| Max.pull-down piston stroke | (mm) | 3500 |
| Crowd Winch | ||
| Max.pull-down piston push | (kN) | - |
| Max.pull-down piston pull | (kN) | - |
| Max. pull-down piston stroke | (mm) | - |
| Main Winch | ||
| Max.pulling force | (kN) | 100 |
| Max. single-rope speed | (m/min) | 70 |
| Diameter of the steel wire rope | (mm) | 24 |
| Auxiliary Winch | ||
| Max. Pulling force | (kN) | 45 |
| Max. single-rope speed | (m/min) | 70 |
| Diameter of the steel wire rope | (mm) | 16 |
| Drilling mast | ||
| Left/right inclination of mast | (°) | 42432 |
| Front inclination of mast | (°) | 5 |
| Rotary table slewing angle | (°) | 360 |
| Traveling | ||
| Max. traveling speed | (km/h) | 3.2 |
| Max.grade ability | (%) | 40 |
| Crawler | ||
| Track shoe width | (mm) | 700 |
| Distance between tracks | (mm) | 3400 |
| The length of crawler | (mm) | 3650 |
| Average ground pressure | (kPa) | 73.6 |
