169KW Hydraulic Piling Machine FD188A 600mm 1600mm Hydraulic Piling Machine

Product Details:

Place of Origin: china
Brand Name: FDM
Certification: CE、ISO9001
Model Number: FD188A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: confer with
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 set per month
Get Best Price Contact Now

Detail Information

Name: Hydraulic Rig Machine For Piling Brand: FDM
Model: FD188A Drilling Diameter: 600-1600mm
Max Drilling Depth: 60/50m Rated Power: 169KW
High Light:

169KW hydraulic piling machine

,

600mm hydraulic piling machine

,

1600mm rig machine for piling

Product Description

FD188A Hydraulic Piling Rig 600-1600mm



FD188A Hydraulic Piling Rig Feature



The folding mast structure has the advantages of simple,great durability. saving cost and making repair moreconvenient.
Using the high position-oriented structure for the frame,which guarantees the verticality between Kelly bar andground, makes construction more convenient, improveswork efficiency,increasing safely.
The new infinitely variable speed power head can outputdifferent torque with the change of bottom layer, andrealize the function of high speed soil dumping. In addition,it can meet the needs of unloading soil in complex projectsby cooperating with the soil bucket function of the mainhoist
Main windlass: Adopting original imported hydraulicpressure motor from Italy. It has sensitive reaction and canfree down, which speed can be up to 70m/min and improvethe construction efficiency. Main winch lays in the cavity ofthe U -shape which locates in the operator's right field ofvision (enables operator to observe working condition ofmain winch freely). This kind of situation is not only simplebut also practical.



FD188A Hydraulic Piling Rig Parameters



Parameter
Type FD188A
Drilling diameter 600-1600mm
Max drilling depth 60/50m
Overall measurement Working dimensions 18950mmX4200mmX7297mm
Transport dimensions 14727mmX3200mmX3325mm
Rotary drive Torque 180kn-m
Rotation speed 5/30rpm
Crowd cylinder Max.push 160kn
Max.pull 100kn
Max.stroke 3000mm
Main winch Max line pull 150kn
Max.line speed 70m/min
Auxiliary winch Max line pull 60kn
Max.line speed 50m/min
Engine Rated power 169KW
Type QSB7 Cummins
Electronic Managerment system Long distance montitor system Available
Drilling record system Available
On car printer Available
hydraulic system pressure 300bar
Chassis Chassis modality Custom
Max.traveling speed 3km/h
Min.ground clearance 400mm
Windth of track shoes 700mm
Leveling around Free adjustment forward/backward 0-100°
Free adjustment left/right 士3°
Machine Weight 45000kg

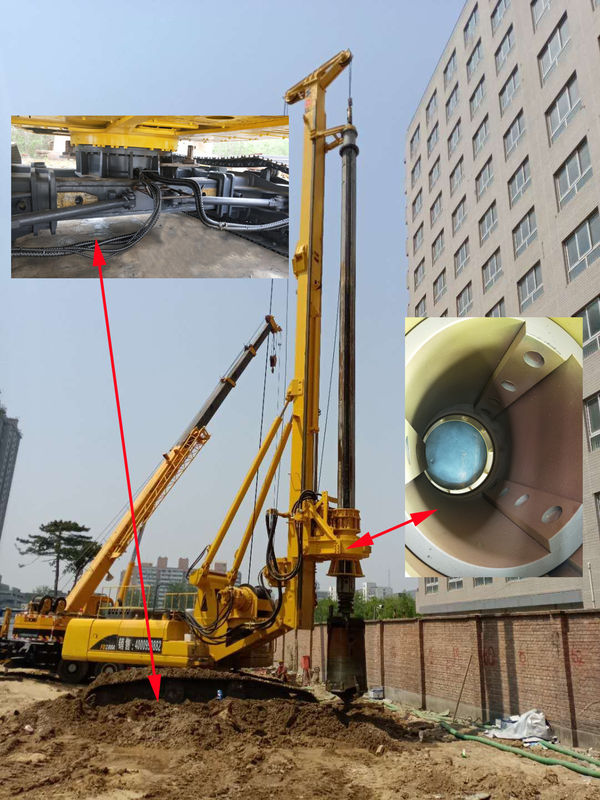

FD188A Hydraulic Piling Rig Pictures
