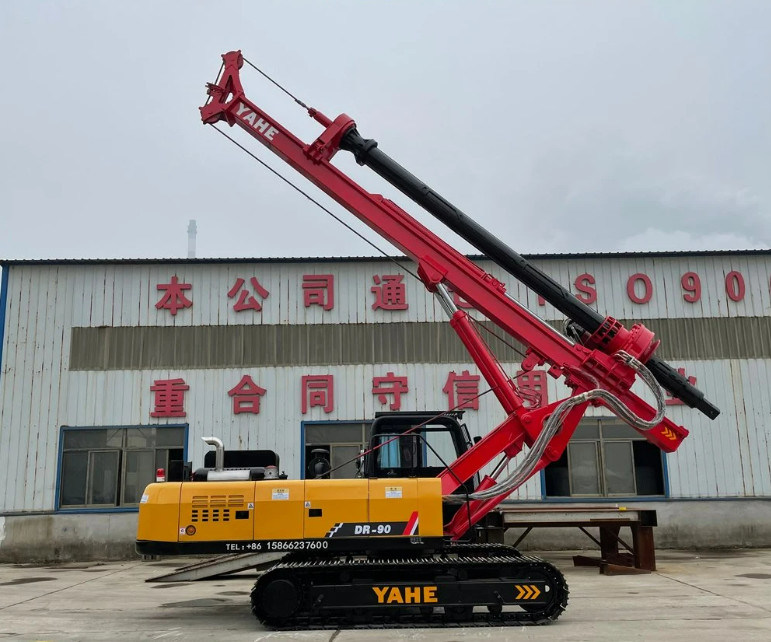

Max Drilling Depth 30m Dr-90 Mini Crawler Hydraulic Piling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | DR |
| Certification: | ISO9001 |
| Model Number: | Dr-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | Dr-90 | Model: | Dr-90 |
|---|---|---|---|
| Moving Type:: | Crawler | Engine: | Cummins |
| Specification: | 9800mm*2200mm*2950mm | Power: | 110KW |
| High Light: | PC360 7 Excavator Construction Machine,180KW Excavator Construction Machine,36Ton used crawler excavator |
||
Product Description
Parameter
| DR-90 | |
| Working mode | hydraulic oil cylinder pressure |
| Drilling diameter (mm) | Φ500-Φ1600 |
| drilling depth (m) | 5-15m |
| Diamension (mm) | 9600X2300X3200mm |
| Total weight (t) | 17T |
| Power head max output torque (KN.m) | 30KN.m |
| Rotary speed (r/min) | 10-50RPM |
| Main winch max lifting force | 120KN |
| Main winch max lifting speed | 50m/min |
| Assisting winch max lifting force | 15KN |
| Assiting winch max lifting speed | 50m/min |
| Mast sidewards inclination | ±4° |
| Mast forwards inclination | 4° |
| Max working pressure | 32Mpa |
| pilot pressure | 3.5Mpa |
| Travelling speed (km/h) | 2 km/h |
| Diesel engine power (KW) | 110KW ,cummins ,water cooling ,turbo charger |
