Xr550d Hydraulic Piling Machine Borehole Drilling Equipment 132M Depth
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | Xr550d |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | XCMG | Model: | Xr550d |
|---|---|---|---|
| Rated Power: | 447kw | Working Pressure: | 33MPa |
| Specification: | 18040*4550*3800mm | Type: | Crawler |
| High Light: | Xr550d Hydraulic Piling Machine,Xr550d Borehole Drilling Equipment,132M Borehole Drilling Equipment |
||
Product Description

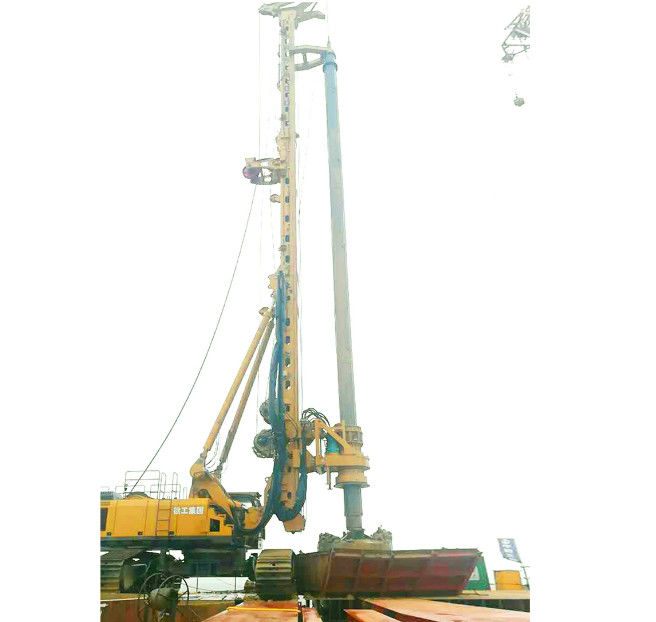

XCMG Official Xr550d Borehole Drilling Equipment Rotary Drill Rig for Sale
It adopts dedicated H-type hydraulic retractable crawler chassis and large diameter slewing bearing, chassis with swing legs to aid disassemble.
It adopts the single-rope main winch structure, the main winch rope at full drilling depth l32 m status can meet single-rope winding, effective solution to line tangle problem, to greatly prolong the service life of steel wire rope.
Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.
Power head with automatic rotation, in normal mode and entering-rock mode rotating speed continuously adjustable.
It is equipped with a centralized lubrication system as standard configuration, maintenance is easy.
|
Type
|
Unit
|
Parameter
|
|
|
Max. drilling diameter
|
m
|
3.5
|
|
|
Max. drilling depth
|
m
|
132
|
|
|
Engine
|
Model
|
/
|
QSX15-C600
|
|
Power
|
kW
|
447
|
|
|
Rotary drive
|
Max. output torque
|
kN.m
|
550
|
|
Rotary speed
|
r/min
|
6-20
|
|
|
Crowd cylinder
|
Max. pull-down piston push
|
kN
|
300
|
|
Max. pull-down piston pull
|
kN
|
400
|
|
|
Max. pull-down piston stroke
|
m
|
6
|
|
|
Crowd winch
|
Max. pull-down piston push
|
kN
|
400
|
|
Max. pull-down piston pull
|
kN
|
520
|
|
|
Max. pull-down piston stroke
|
m
|
10/16
|
|
|
Main winch
|
Max. pulling force
|
kN
|
600
|
|
Max. speed
|
m/min
|
60
|
|
|
Auxiliary winch
|
Max. pulling force
|
kN
|
180
|
|
Max. speed
|
m/min
|
50
|
|
|
Mast inclination
|
Lateral/ forwards/ backwards
|
°
|
±5/90/15
|
|
Undercarrige
|
Max. traveling speed
|
km/h
|
1
|
|
Max. grade ability
|
%
|
35
|
|
|
Min. clearance
|
mm
|
500
|
|
|
Track shoe width
|
mm
|
1000
|
|
|
Distance between tracks
|
mm
|
4550-6000
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
33
|
|
Overall weight
|
Max. traveling speed of the overall unit
|
t
|
185
|
|
Dimension
|
Working condition
|
mm
|
12790*6000*33325
|
|
Transportation condition
|
mm
|
18040*4550*3800
|
|
