Xr280d Hydraulic Bored Pile Drilling Machine Foundation Engineering
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | Xr280d |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | XCMG | Model: | Xr280d |
|---|---|---|---|
| Weight: | 84 Ton | Specification: | 10770*4800*23550mm |
| Rotational Speed: | 298kw/(2200r/Min) | HS Code: | 87059091 |
| High Light: | Xr280d Bored Pile Drilling Machine,Foundation Bored Pile Drilling Machine,Engineering Bored Pile Drilling Machine |
||
Product Description

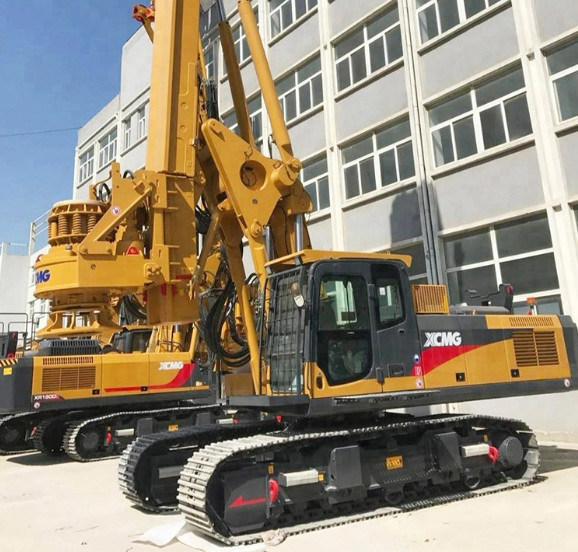

XCMG Official Earth Drill Machine XR280D Hydraulic Rotary Drilling Rig
XCMG XR280D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
* The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported turbo-supercharged engine(meeting EU-III standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.
* The patented parallelogram articulation mechanism can work in a large area. The drill mast, which is designed in box structure and made of the materials with high strength, has good rigidityand anti-distortion, guaranteeing the drilling accuracy. The hinge is provided with the bearing exempt from lubrication, and can work freely. The slag can be discharged in any angle due to 360 degree lifting and revolving.
* The intellectual controlling system, CAN bus and PLC with self-intellectual property right are used, including the automatic and manual regulation of the perpendicularity of the drill mast, automatic display of the drilling depth, automatic rotation positioning control, and intellectual fault diagnosis control.
|
Drilling rig dimension in transport condition (L × W × H)
|
mm
|
17380×3500×3540
|
|
|
Weight of overall unit (standard configuration, excluding drilling tool)
|
t
|
84
|
|
|
Engine
|
Model
|
|
CUMMINS QSM11-C400
|
|
Rated power/speed
|
kw
|
298/(2200r/min)
|
|
|
Rotary drive
|
Max. torque
|
kn •m
|
280
|
|
Rotational speed
|
r/min
|
6~22
|
|
|
Crowd cylinder
|
Max. Pushing force
|
kn
|
210
|
|
Max. Pulling force
|
kn
|
220
|
|
|
Max.stroke
|
mm
|
6000
|
|
|
Main winch
|
Max.pulling force
|
kn
|
260
|
|
Max. single-rope speed
|
m/min
|
60
|
|
|
Auxiliary winch
|
Max.pulling force
|
kn
|
100
|
|
Max. single-rope speed
|
m/min
|
65
|
|
|
Drilling mast
|
Left/right inclination of mast
|
°
|
4/4
|
|
Front/back inclination of mast
|
°
|
5/15
|
|
|
Rotary table slewing angle
|
°
|
360
|
|
|
Traveling
|
Max. traveling speed of the overall unit
|
km/h
|
1.5
|
|
Max. climbable gradient of the overall unit
|
%
|
35
|
|
|
Crawler
|
Width of crawler plate
|
mm
|
800
|
|
External width of crawler (min.-max.)
|
mm
|
3500~4800
|
|
|
Center distance between two longitudinal wheels of crawler
|
mm
|
5175
|
|
|
Average ground pressure
|
kpa
|
102
|
|
