2000mm Diameter XCMG Drill Rig Xr220d Rotary Drilling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XCMG |
| Model Number: | Xr220d |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | XCMG | Model: | Xr220d |
|---|---|---|---|
| Weight Of Overall Unit: | 76t | Specification: | 8968*4400*22180mm |
| Hydraulic System Working Pressure: | 35MPa | Production Capacity: | 10000 Units/Year |
| High Light: | 2000mm XCMG Drill Rig,XCMG Drill Rig Xr220d,Xr220d Rotary Drilling Machine |
||
Product Description

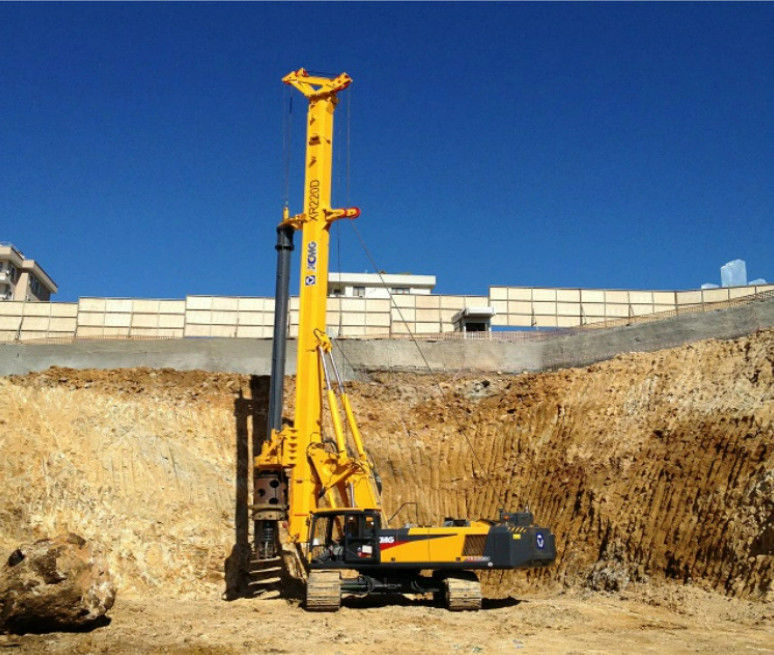

XCMG Drill Rig Xr220d Rotary Drilling Rig
XCMG XR220D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
* The machine adapt single row rope for main winch to figure out the wear of steel rope. and extend the life-span.
* With infrared camera for observing main winch, Manipulator can observe the state of steel rope at day and night in cab.
* Adopting the imported supercharged CUMMINS engine with European III effluent standard. Meet environmental rotection and energy conservation.
* With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.
* The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.
|
Description
|
Unit
|
Parameter
|
|
|
Max. drilling diameter
|
mm
|
2000
|
|
|
Max. drilling depth
|
m
|
67
|
|
|
Engine
|
Model
|
|
QSL-325
|
|
Rated power/speed
|
kW
|
242/(2200r/min)
|
|
|
Rotary drive
|
Max. torque
|
kN.m
|
220
|
|
Rotational speed
|
r/min
|
7-25
|
|
|
Crowd cylinder
|
Max. Pushing force
|
kN
|
200
|
|
Max. Pulling force
|
kN
|
200
|
|
|
Max. stroke
|
mm
|
5000
|
|
|
Main winch
|
Max. pulling force
|
kN
|
230
|
|
Max. single-rope speed
|
m/min
|
70
|
|
|
Diameter of the steel wire rope
|
mm
|
30
|
|
|
Auxiliary winch
|
Max. pulling force
|
kN
|
80
|
|
Max. single-rope speed
|
m/min
|
60
|
|
|
Diameter of the steel wire rope
|
mm
|
20
|
|
|
Traveling
|
Max. traveling speed of the overall unit
|
km/h
|
1.5
|
|
Max. climbable gradient of the overall unit
|
%
|
35
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
35
|
|
Rotary table slewing angle
|
°
|
360
|
|
|
Weight of overall unit
|
t
|
76
|
|
|
Dimension
|
Working condition
|
mm
|
8968*4400*22180
|
|
Transportation condition
|
mm
|
16360*3250*3535
|
|
