• Zr125c-3K Hydraulic Piling Machine Highway And Bridge Construction

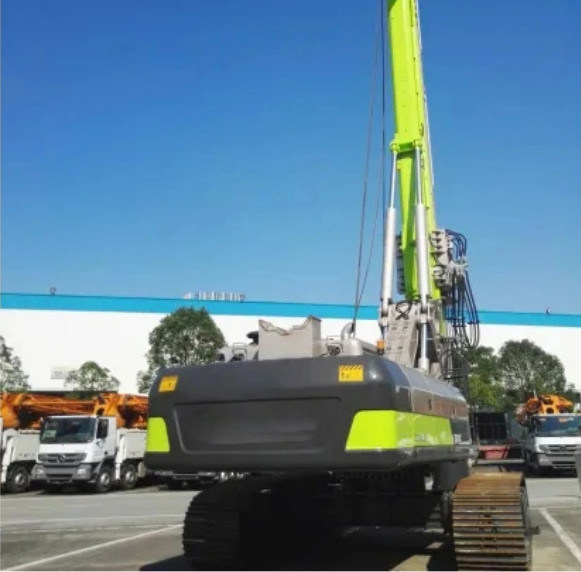

Zr125c-3K Hydraulic Piling Machine Highway And Bridge Construction

Zr125c-3K Hydraulic Piling Machine Highway And Bridge Construction

Product Details:

Place of Origin: China
Brand Name: Zr125c-3K
Model Number: Zr125c-3K

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negitionable
Packaging Details: No packaging
Delivery Time: 30 days after receiving down payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10
Get Best Price Contact Now

Detail Information

Model: Zr125c-3K Rated Power: 119kw
Torque: 135kn.M Drilling Speed: 6~33r/Min
High Light:

Zr125c-3K Hydraulic Piling Machine

,

Highway Hydraulic Piling Machine

,

Construction Hydraulic Piling Machine

Product Description

Product Overview
The main winch is located underneath the mast,making it very convenient to observe the walking rope;
The over-loading proof device of the crowding system can protect the Kelly bar effectively and make full use of capacity of the machine to ensure verticality of the borehole;
Zoomlion's specific-use in-house telescopic-crawler undercarriage is used to achieve superior stability and transport convenience;
The automatic engine power control system jointly controls engine speed,hydraulic system pressure and main pump displacement to protect the engine to the most extent,making the engine more economic,efficient,reliable and keeping the machine in the optimum operating status;
Drilling tools for different purposes with different purposes with different specifications such as long or short augers,generic-use drilling buckets and core barrels,etc.,are equipped to satisfy construction requirements in different geological conditions.
Product Paramenters
Torque(KN.M)
135
Drilling Diameter(mm)
1300
Drilling Depth(m)
inter-locking
20
Friction
28
Drilling Speed(r/min)
6~33
Engine Model
QSB5.9-C160
Rated Power(kw)
119
Max.Crowd Force(kN)
120
Max.Crowd Cylinder Pull(kN)
130
Line Pull(main winch)(kN)
135
Line Speed(main winch)(m/min)
80
Line Pull(aux.winch)(kN)
50
Line Speed(aux.winch)(m/min)
70
Operating Mass(t)
37
Traction Force(kN)
250
Rope diameter(Main winch)(mm)
22
Rope diameter(auxiliary winch)(mm)
18
