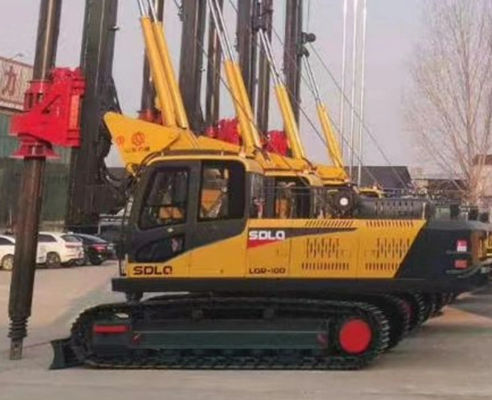

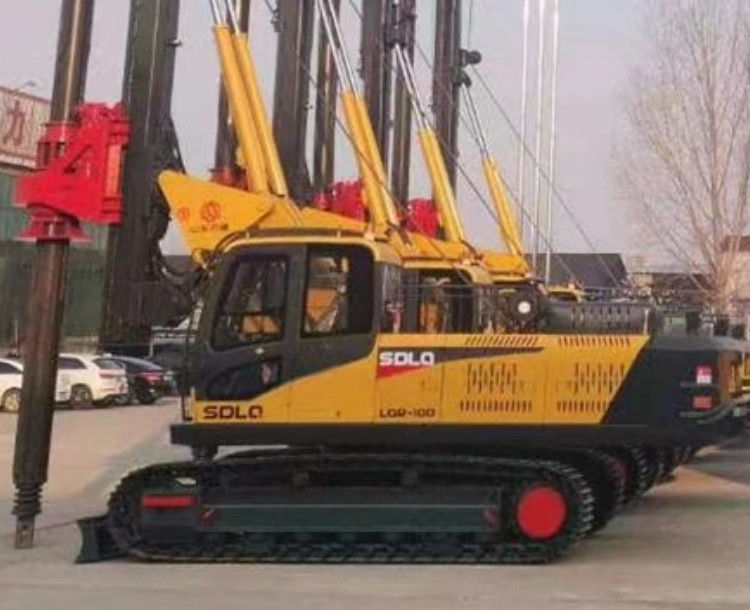

20m Crawler Mounted Rotary Drilling Rig Piling Machinery
Product Details:
Place of Origin: | China |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Negitionable |
Packaging Details: | No packaging |
Delivery Time: | 30 days after receiving down payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10 |
Detail Information |
|||
Drilling Way: | Rotary | Engine Brand: | Cummins |
---|---|---|---|
HS Code: | 8430509000 | Bit Type: | Auger Drilling |
Production Capacity: | 10 Sets/Month | Transport Package: | Nude Packing |
High Light: | Crawler Mounted Rotary Drilling Rig,20m Rotary Drilling Rig,20m Crawler Piling Machinery |
Product Description
Product Description
1, high-performance electro-hydraulic control system, and the engine output to match the priority to energy conservation;
2, the power head adopts international famous company, multi-level vibration technology to ensure a more stable machine construction, double hydraulic power head, large torque, doubled to extend its service life;
3, the mast vertical auto technology, higher pile hole vertical accuracy, more convenient construction;
4, high stability, in accordance with EU safety standards perfectly designed to meet the requirements of dynamic and static stability.
5. Highly automatization system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.
6. Small investment,quick gains,The utility model also has high cost performance, wide application scope and high social and economic benefits;
2, the power head adopts international famous company, multi-level vibration technology to ensure a more stable machine construction, double hydraulic power head, large torque, doubled to extend its service life;
3, the mast vertical auto technology, higher pile hole vertical accuracy, more convenient construction;
4, high stability, in accordance with EU safety standards perfectly designed to meet the requirements of dynamic and static stability.
5. Highly automatization system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.
6. Small investment,quick gains,The utility model also has high cost performance, wide application scope and high social and economic benefits;
Technical parameters:
LQR-100 Crawler Mounted Locking Rotary Drilling Rig:
LQR-100 Crawler Mounted Locking Rotary Drilling Rig:
Model | LQR100 | |
Diesel engine | Brand | Cummins |
Power (kw) | 150 | |
Drilling depth (m) | 20 | |
Max. hole diameter (mm) | 1200 | |
Power head | Torque (kn/m) | 100 |
Rotate speed (r/min) | 10-50 | |
Main winch | Max.lifting power (kn) | 120 |
Max.lifting speed (m/min) | 70 | |
Wireline diameter (mm) | 24 | |
Vice winch | Max.lifting power (kn) | 30 |
Max.lifting speed (m/min | 50 | |
Wireline diameter (mm) | 12 | |
Pressurized cylinder | Max. pressure (kn) | 100 |
Max.lifting power (kn) | 100 | |
Stroke (mm) | 2500 | |
Walking | Travel speed (km/h) | 5 |
Grade ability (°) | 30 | |
System pressure (mpa) | 28 | |
Weight (ton) | 23.5 | |
Working radius (m) | 3.8 | |
Dimension (LxWxH) (mm) | 11000x2650x3350 |
