Hydraulic Rotary Bore Mini Piling Rig Driving Machine 90-140mm Dia
Product Details:
| Place of Origin: | China |
| Brand Name: | Mini Piling Rig |
| Model Number: | Mini Piling Rig |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | Mini Piling Rig | Model: | Mini Piling Rig |
|---|---|---|---|
| Moving Type:: | Crawler | HS Code: | 8430691 |
| High Light: | Hydraulic Mini Piling Rig,140mm Mini Piling Rig,140mm Pile Driving Machine |
||
Product Description

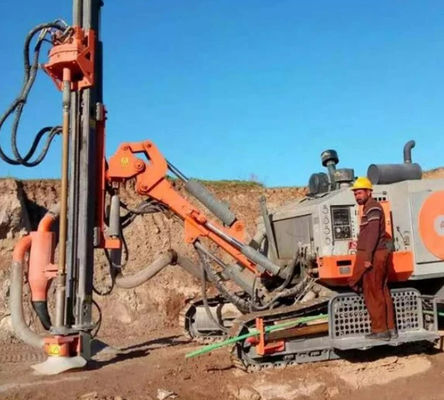

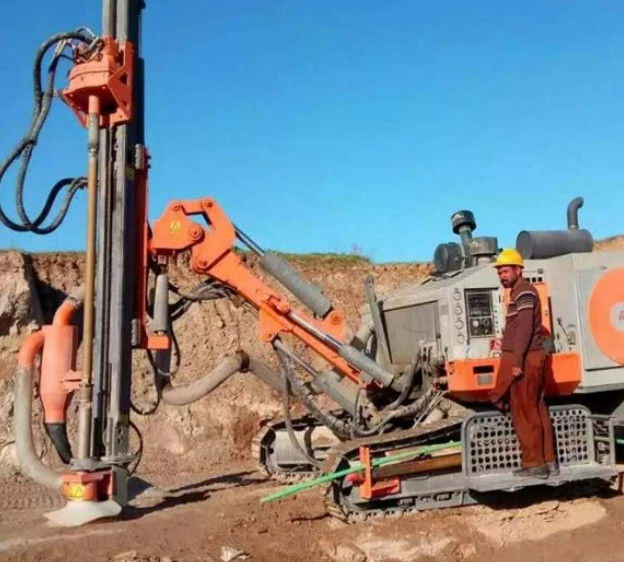

Hydraulic Rotary Bore Mini Piling Rig Driving Machine
Technical Parameters
| Aperture range | Drilling diameter | 90-140mm |
| Drilling depth | 30m | |
| Walking system | Walking speed | 2.5km/h |
| Gradeability | 30° | |
| Slewing head | Gyrator torque | 2800N.m |
| Swing speed | 120rpm | |
| Drill pipe and impactor | Drill pipe | 76*3000 |
| Supporting impactor | 3"4"5" | |
| Propulsion beam | Propulsion route | 3400mm |
| Host rate | Total power | 73.5kw |
| Ground clearance | Ground clearance | 410mm |
| Weight and Dimensions | A5Total Weight | 5800Kg |
| A5ATotal Weight | 5500KG | |
| Weight and Dimensions | 6500×2250×2600mm |
