ISO9001 Hammer Piling Machine ZOOMLINE ZR160L Hydraulic Hammer Piling Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | ZOOMLINE |
| Certification: | CE、ISO9001 |
| Model Number: | ZR160L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Hammer Piling Machine | Brand: | ZOOMLINE |
|---|---|---|---|
| Model: | ZR160L | Line Speed(aux.winch)(m/min): | 80 |
| Operating Mass(t): | 50 | Traction Force(kN): | 330 |
| High Light: | ISO9001 hammer piling machine,50t hammer piling machine,ZR160L hydraulic hammer piling machine |
||
Product Description
ZOOMLINE ZR160L Hydraulic Piling Rig Hammer Piling Machine
ZOOMLINE ZR160L Hammer Piling Machine Feature
1. High performance-all air driven down the hole drill
2. Simple structure and single dynamic
3. Adapt to any geological feature
4. Easy operating and move
5. Good noise reduction effect, reduce the pollut ion
ZOOMLINE ZR160L Hammer Piling Machine Parameters
|
Torque(KN.M)
|
160
|
|
|
Drilling Diameter(mm)
|
1500
|
|
|
Drilling Depth(m)
|
inter-locking
|
44
|
|
Friction
|
56
|
|
|
Drilling Speed(r/min)
|
5～35
|
|
|
Engine Model
|
QSB5.9
|
|
|
Rated Power(kw)
|
154
|
|
|
Max.Crowd Force(kN)
|
160
|
|
|
Max.Crowd Cylinder Pull(kN)
|
160
|
|
|
Line Pull(main winch)(kN)
|
160
|
|
|
Line Speed(main winch)(m/min)
|
82
|
|
|
Line Pull(aux.winch)(kN)
|
60
|
|
|
Line Speed(aux.winch)(m/min)
|
80
|
|
|
Operating Mass(t)
|
50
|
|
|
Traction Force(kN)
|
330
|
|
|
Rope diameter(Main winch)(mm)
|
26
|
|
|
Rope diameter(auxiliary winch)(mm)
|
18
|
|

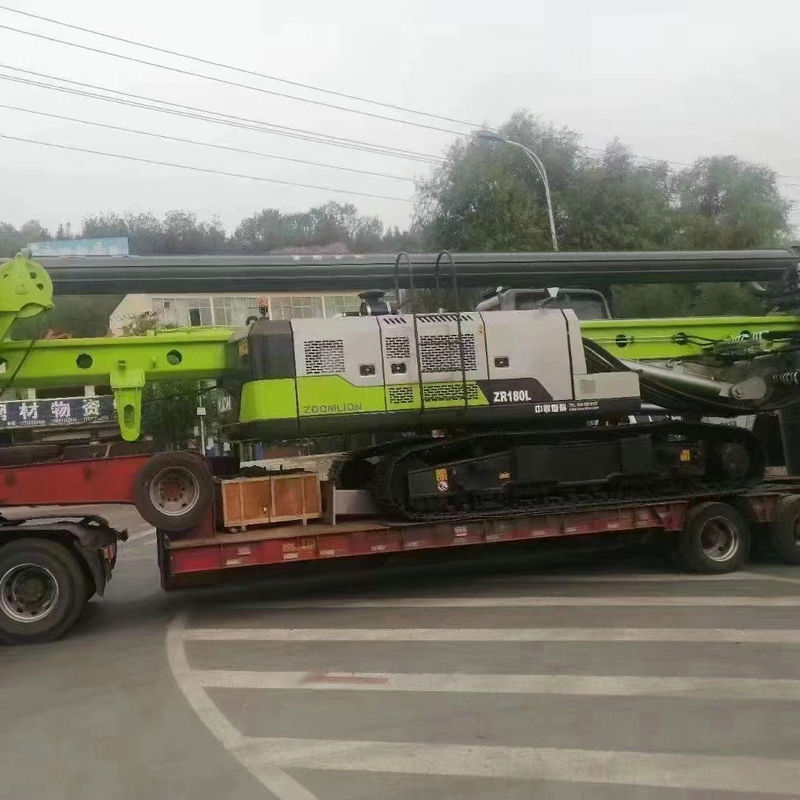

ZOOMLINE ZR160L Hammer Piling Machine Pictures
