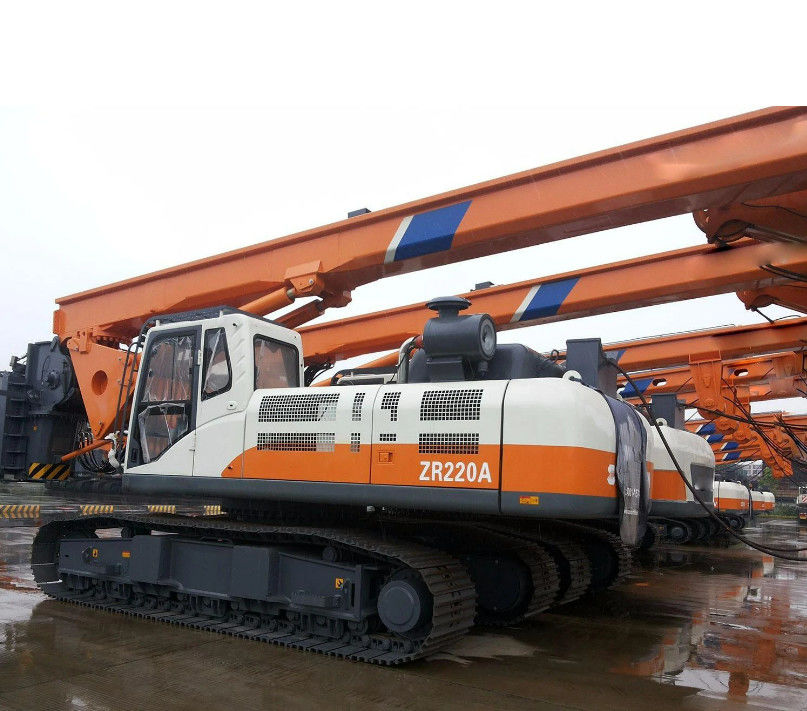

Zoomlion Rotary Drilling Rig With Easy Transportation ZR220A
Product Details:
| Place of Origin: | China |
| Brand Name: | zoomlion |
| Certification: | XC768814 |
| Model Number: | ZR220A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | Zoomlion | Model: | ZR220A |
|---|---|---|---|
| Certification: | CE, ISO 9001:2000 | Drilling Speed: | 7~26 R/Min |
| Rated Power: | 242 Kw | Type: | Crawler |
| High Light: | Zoomlion Rotary Drilling Rig,ZR220A Rotary Drilling Rig,ZR220A rotary pile drilling rig |
||
Product Description
-
A classic model that dominates the market, with stable performance and reliable quality.
-
Strong construction capacity due to rotary drive with large torque.
-
High construction efficiency due to big flow main pump and multi-gear rotary drive.
-
Strong ability due to the front main winch, the center of gravity moving forward more effective push crowd force.
-
22 items self auto-check , safety and performance monitoring.
-
New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view monitoring.
-
Option: Spin-off
| NAME | SPEC. | |
|---|---|---|
| Torque(KN.M) | 220 | |
| Drilling Diameter(mm) | 2000 | |
| Drilling Depth(m) | inter-locking | 48 |
| Friction | 60 | |
| Drilling Speed(r/min) | 7~26 | |
| Engine Model | Cummins QSL9 | |
| Rated Power(kw) | 242 | |
| Rated Engine Speed(r/min) | 2000 | |
| Max.Crowd Force(kN) | 180 | |
| Max.Crowd Cylinder Pull(kN) | 200 | |
| Line Pull(main winch)(kN) | 200 | |
| Line Speed(main winch)(m/min) | 63 | |
| Line Pull(aux.winch)(kN) | 90 | |
| Line Speed(aux.winch)(m/min) | 66 | |
| Operating Mass(t) | 73 | |
| Traction Force(kN) | 423 | |
| Rope diameter(Main winch)(mm) | 28 | |
| Rope diameter(auxiliary winch)(mm) | 22 | |
