• ISO9001 Rotary Pile Drilling Rig 44 Meter Hydraulic Rotary Drilling ZR160L
ISO9001 Rotary Pile Drilling Rig 44 Meter Hydraulic Rotary Drilling ZR160L

ISO9001 Rotary Pile Drilling Rig 44 Meter Hydraulic Rotary Drilling ZR160L

Product Details:

Place of Origin: china
Brand Name: ZOOMLINE
Certification: CE、ISO9001
Model Number: ZR160L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: confer with
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 set per month
Get Best Price Contact Now

Detail Information

Name: Rotary Pile Drilling Rig Brand: ZOOMLINE
Model: ZR160L Engine Model: QSB5.9
Rope Diameter(Main Winch)(mm): 26 Rope Diameter(auxiliary Winch)(mm): 18
High Light:

ISO9001 rotary pile drilling rig

,

ZR160L rotary pile drilling rig

,

44 Meter hydraulic rotary drilling

Product Description

ZOOMLINE ZR160L Hydraulic Rotary Pile Drilling Rig 44 Meter



ZOOMLINE ZR160L Rotary Pile Drilling Rig Application



Rotary Pile Drilling Rig are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.

The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.



ZOOMLINE ZR160L Rotary Pile Drilling Rig Parameters



Torque(KN.M)
160
Drilling Diameter(mm)
1500
Drilling Depth(m)
inter-locking
44
Friction
56
Drilling Speed(r/min)
5~35
Engine Model
QSB5.9
Rated Power(kw)
154
Max.Crowd Force(kN)
160
Max.Crowd Cylinder Pull(kN)
160
Line Pull(main winch)(kN)
160
Line Speed(main winch)(m/min)
82
Line Pull(aux.winch)(kN)
60
Line Speed(aux.winch)(m/min)
80
Operating Mass(t)
50
Traction Force(kN)
330
Rope diameter(Main winch)(mm)
26
Rope diameter(auxiliary winch)(mm)
18

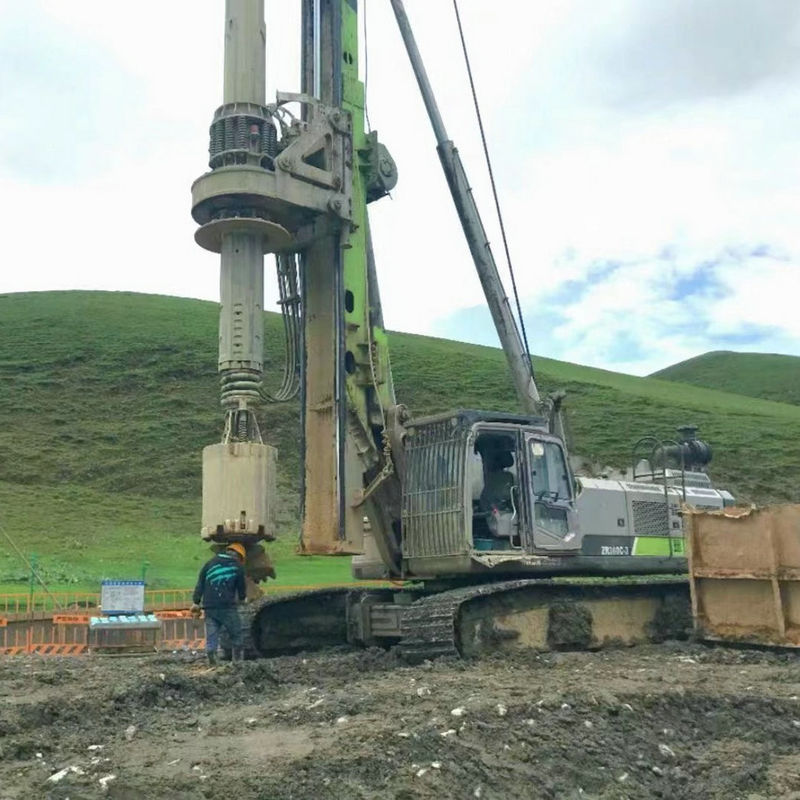

ZOOMLINE ZR160L Rotary Pile Drilling Rig Pictures



ISO9001 Rotary Pile Drilling Rig 44 Meter Hydraulic Rotary Drilling ZR160L 0
