ZOOMLINE ZR160L Construction Machine 1500mm Dia 154kw Hydraulic Rotary Drilling
Product Details:
| Place of Origin: | china |
| Brand Name: | ZOOMLINE |
| Certification: | CE、ISO9001 |
| Model Number: | ZR160L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Hydraulic Rotary Drilling Machine | Brand: | ZOOMLINE |
|---|---|---|---|
| Model: | ZR160L | Engine Model: | QSB5.9 |
| Rated Power(kw): | 154kw | Max.Crowd Force(kN): | 160 |
| High Light: | ZOOMLINE ZR160L Construction Machine,1500mm Dia Construction Machine,154kw hydraulic rotary drilling machine |
||
Product Description
ZOOMLINE ZR160L Hydraulic Rotary Drilling Machine 1500mm Dia
ZOOMLINE ZR160L Hydraulic Rotary Drilling Machine Application
It's applicable for concrete cast in situ pile for foundation construction such as urban
construction,railway,highway,bridge,subway and building.
ZOOMLINE ZR160L Hydraulic Rotary Drilling Machine Parameters
|
Torque(KN.M)
|
160
|
|
|
Drilling Diameter(mm)
|
1500
|
|
|
Drilling Depth(m)
|
inter-locking
|
44
|
|
Friction
|
56
|
|
|
Drilling Speed(r/min)
|
5～35
|
|
|
Engine Model
|
QSB5.9
|
|
|
Rated Power(kw)
|
154
|
|
|
Max.Crowd Force(kN)
|
160
|
|
|
Max.Crowd Cylinder Pull(kN)
|
160
|
|
|
Line Pull(main winch)(kN)
|
160
|
|
|
Line Speed(main winch)(m/min)
|
82
|
|
|
Line Pull(aux.winch)(kN)
|
60
|
|
|
Line Speed(aux.winch)(m/min)
|
80
|
|
|
Operating Mass(t)
|
50
|
|
|
Traction Force(kN)
|
330
|
|
|
Rope diameter(Main winch)(mm)
|
26
|
|
|
Rope diameter(auxiliary winch)(mm)
|
18
|
|

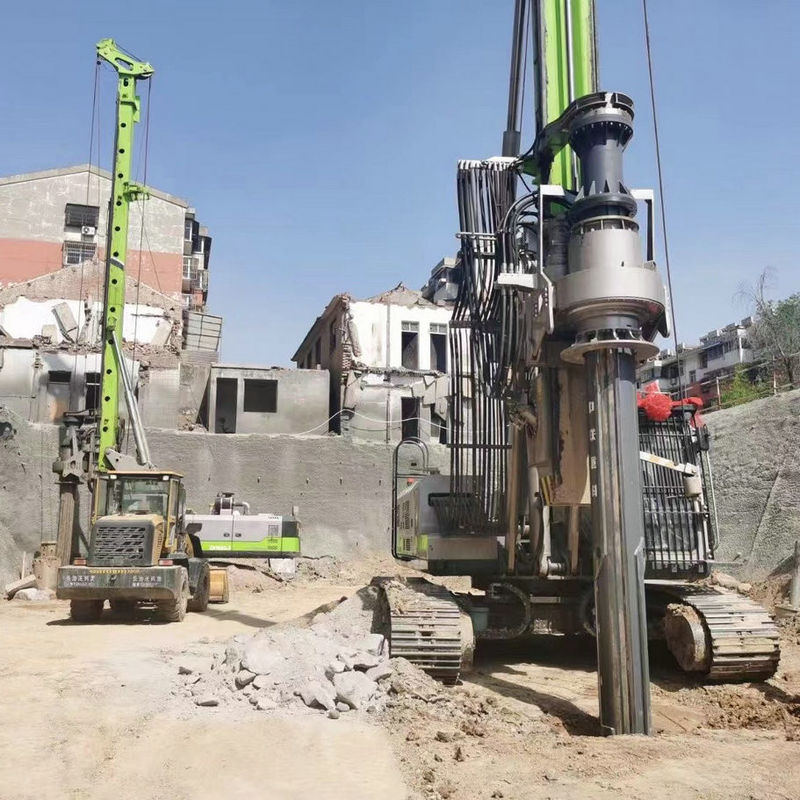

ZOOMLINE ZR160L Hydraulic Rotary Drilling Machine Pictures
