ISO9001 Used Hydraulic Piling Rig Zr500l 122m Hydraulic Hammer Piling Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | ZOOMLINE |
| Certification: | CE、ISO9001 |
| Model Number: | zr500l |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Hydraulic Hammer Piling Machine | Brand: | ZOOMLINE |
|---|---|---|---|
| Model: | Zr500l | Max.Crowd Cylinder Pull(kN): | 480 |
| Drilling Diameter: | 3000/3500(mm) | Depth: | 122m |
| High Light: | ISO9001 Used Hydraulic Piling Rig,Zr500l Hydraulic Piling Rig,122m hydraulic hammer piling machine |
||
Product Description
Used ZOOMLINE Zr500l 122m Hydraulic Hammer Piling Machine Foundation Use
ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Introduction
Hydraulic Hammer Piling Machine is a kind of mechanical equipment for the construction of bored piles by taking soil. The rotary bucket is driven by the drill rod to rotate and cut the soil, and then it is lifted to the periodic cycle operation of unloading the soil outside the hole. The rotary drilling rig adopts a multi-purpose modular design and can be used for the construction of a variety of piles. It is more convenient and efficient than the previous pile driver.
ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Parameters
| Torque(KN.M) | 500 | |
| Drilling Diameter(mm) | 3000/3500 | |
| Drilling Depth(m) | inter-locking | 101 |
| Friction | 122 | |
| Drilling Speed(r/min) | 5.8～22 | |
| Engine Model | QSX15-C600 | |
| Rated Power(kw) | 447 | |
| Max.Crowd Force(kN) | 480 | |
| Max.Crowd Cylinder Pull(kN) | 480 | |
| Line Pull(main winch)(kN) | 600 | |
| Line Speed(main winch)(m/min) | 55 | |
| Line Pull(aux.winch)(kN) | 112 | |
| Line Speed(aux.winch)(m/min) | 60 | |
| Operating Mass(t) | 185 | |
| Traction Force(kN) | 918 | |
| Rope diameter(Main winch)(mm) | 46 | |
| Rope diameter(auxiliary winch)(mm) | 22 | |

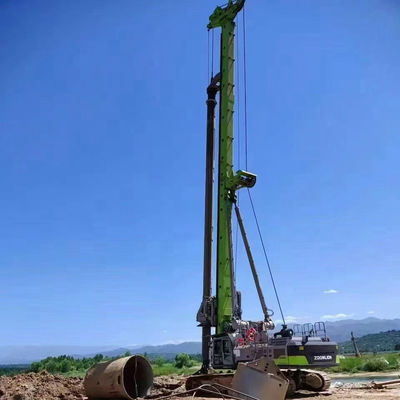

ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Pictures
