Used ZR360L ZOOMLINE Crawler Borehole Mining Pneumatic Rotary Mine Drilling Rig
Product Details:
| Place of Origin: | china |
| Brand Name: | ZOOMLINE |
| Certification: | CE、ISO9001 |
| Model Number: | ZR360L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Screw Pile Machine | Brand: | ZOOMLINE |
|---|---|---|---|
| Model: | ZR360L | Max. Drilling Diameter: | 2500 Mm |
| Max. Pile Depth: | 88/100M | Engine Model: | Cumi Ns QSM11 |
| High Light: | Used ZR360L Rotary Piling Machine,ZOOMLINE Rotary Piling Machine,100M mini rotary drilling rig |
||
Product Description
Used ZR360L ZOOMLINE 360KN.M Hydraulic Rotary Drilling Rig 58m 65m
ZR360L ZOOMLINE Rotary Drilling Rig Quick Details
* The rear main winch with single-layer-rope drum and twin reducers mechanism, which extends service life of the steel wire rope
significantly.
* High construction efficiency due to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.
* More stable structure and stronger bearing capacity due to enhanced mast section, double movable booms with parallel luffing
mechanism, large slewing support, and reinforced chassis .
* One key for folding cathead, fixed mast support. Equipment can be transferred easily and quickly.
* Folding mast, overall transport height 3580mm.
ZR360L ZOOMLINE Rotary Drilling Rig Parameters
| NAME | SPEC. | |
| Torque(KN.M) | 360 | |
| Drilling Diameter(mm) | 2500 | |
| Drilling Depth(m) | inter-locking | 58/65 |
| Friction | 88/100 | |
| Drilling Speed(r/min) | 6-28 | |
| Engine Model | Cumi ns QSM11 | |
| Rated Power(kw) | 298 | |
| Rated Engine Speed(r/min) | 1900 | |
| Max.Crowd Force(kN) | 300 | |
| Max.Crowd Cylinder Pull(kN) | 360 | |
| Line Pull(main winch)(kN) | 340 | |
| Line Speed(main winch)(m/min) | 72 | |
| Line Pull(aux.winch)(kN) | 90 | |
| Line Speed(aux.winch)(m/min) | 70 | |
| Operating Mass(t) | 108 | |
| Traction Force(kN) | 560 | |
| Rope diameter(Main winch)(mm) | 36 | |
| Rope diameter(auxiliary winch)(mm) | 22 | |

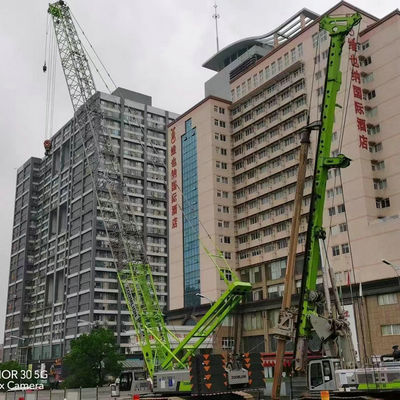

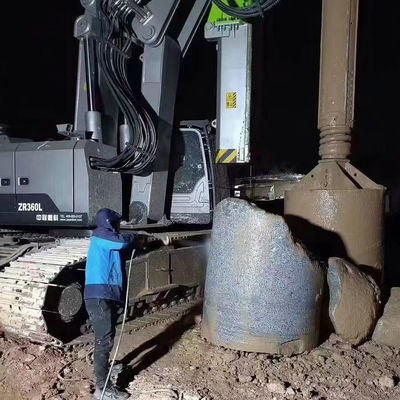

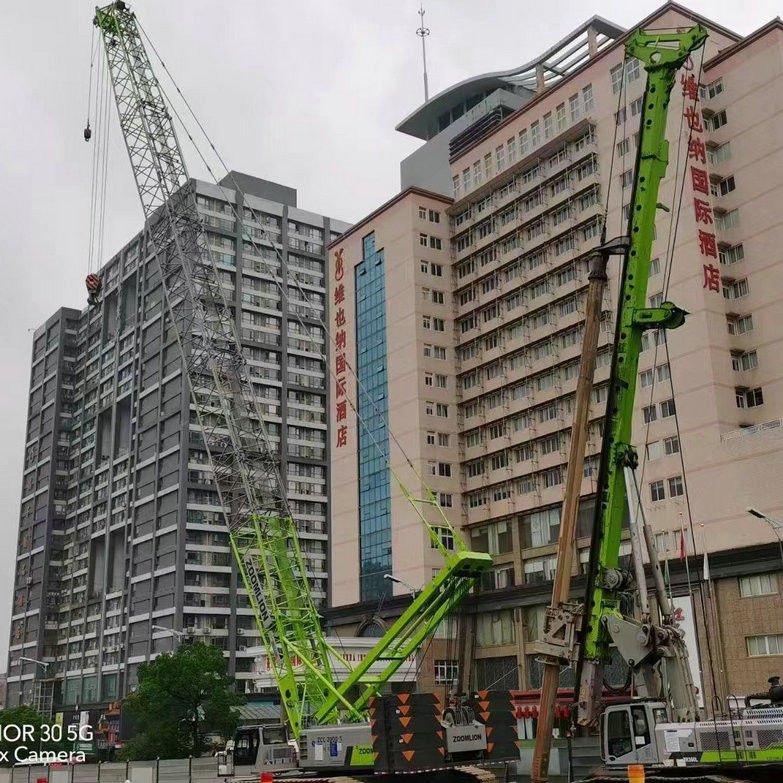

ZR360L ZOOMLINE Rotary Drilling Rig Pictures
