SR 415 Construction Piling Machine 90m Rotary Rig Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | Sany |
| Certification: | CE、ISO9001 |
| Model Number: | SR 415 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Construction Piling Machine | Brand: | Sany |
|---|---|---|---|
| Model: | SR 415 | Max. Pile Diameter: | 3000 Mm |
| Max. Pile Depth: | 110/90 M | Operating Weight: | 145 T |
| High Light: | SR 415 Construction Piling Machine,3000mm Construction Piling Machine,90m rotary rig machine |
||
Product Description
Sany SR 415 Construction Piling Machine 2021 Rotary Drilling Rig
SR 415 Construction Piling Machine Feature
SR 415 Construction Piling Machine Expert in construction of large diameter. and 100m deep borehole without torque limit; main winch with large lifting force to ensure stable operation.
Strong rock drilling ability
The heaviest model of the same level ensures large crowding force; equipped with heavy duty, impact resistance reducer to realize stable torque output; excellent drilling ability in hard rock layers more than 60MPa.
The structural parts adopt impact, fatigue resistance technology in rock drilling, single layer wire rope winding for interlocking Kelly bar; free of mutual extrusion and wear in wire rope layers to increase service life by 35%.
SR 415 Construction Piling Machine Adopt power optimization control technology to realize power distribution in real time, excellent compound action response time. High fuel efficiency and low comprehensive fuel consumption, fuel consumption reduced by 10%~15%.
SR 415 Construction Piling Machine Parameters
| Brand | Sany |
| Applicable Area | Foundation reinforcement and other foundation projects |
| Model Name/Number | SR415R |
| Maximum Pile Diameter | 3,000 mm |
| Maximum Pile Depth | 112/72 m |
| Maximum Output Torque | 415 kN.m |

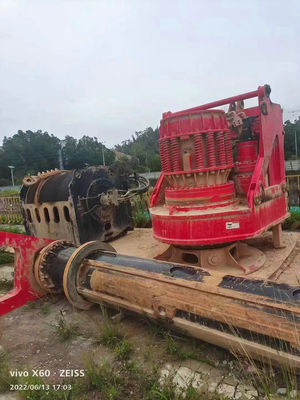

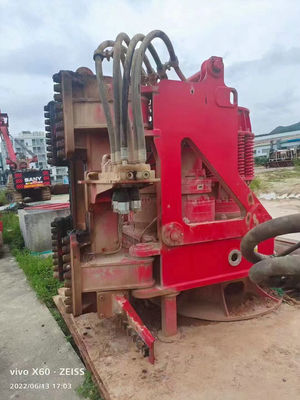

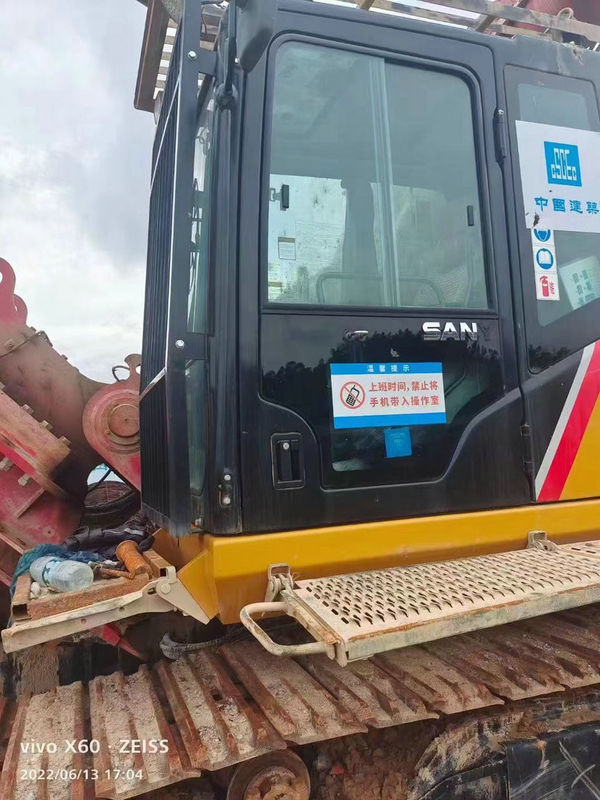

SR 415 Construction Piling Machine Pictures
