SR155 C10 Construction Piling Machine 44m Hydraulic Rotary Drilling
Product Details:
| Place of Origin: | china |
| Brand Name: | Sany |
| Certification: | CE、ISO9001 |
| Model Number: | SR155-C10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Overall transport; Packaged in one flat rack. |
| Delivery Time: | confer with |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Maximum Borehole Diameter: | 1.5 M | Maximum Drilling Depth: | 56/44 M |
|---|---|---|---|
| Total Weight Of Equipment: | 48000 Kg | Engine Rated Power: | 147 KW |
| High Light: | SR155 C10 Construction Piling Machine,1.5m Construction Piling Machine,44m hydraulic rotary drilling |
||
Product Description

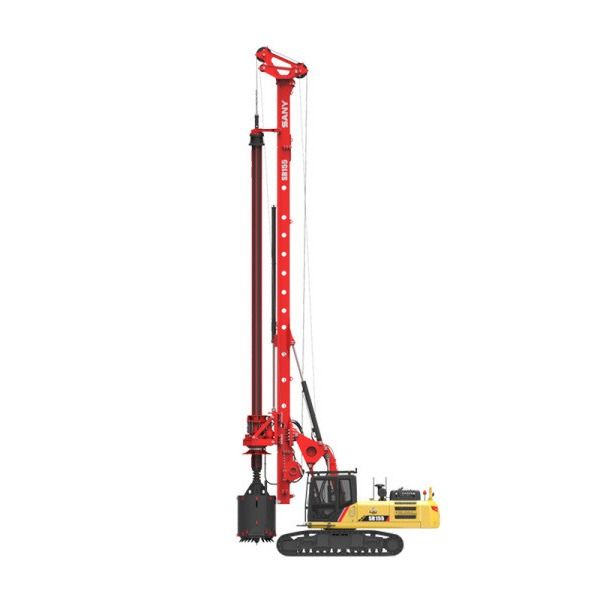

Sany SR155-C10 rotary drilling rig performance characteristics
Selling Points of Products
Efficient and flexible:
Facing the construction of pile holes in small and medium-sized soil layer, the main winch speed is fast, the verticality of the hole is high,
Flexible operation, the efficiency of similar models is 15% faster.
Economy and fuel saving:
Using power optimization control technology, real-time adjustment of power distribution, quick response
Speed, high fuel efficiency, comprehensive energy saving 10%~15%.
High reliability:
Mast adopts box structure, anti-torsion and anti-fatigue; Drill pipe upgrade to sixth generation, material
Material upgrading, strengthening ring lifting, overall strength increased by 25%, with strong weathering rock
The construction capacity of stone.
Convenient transportation:
The size of the machine is small, the weight is only 48t, the transportation is not too high, the city transit is unimpeded,
Is ok.
Smart upgrade:
10 inch HD touch screen, response speed, more convenient operation. Easy way to hand
Machine exclusive APP, remote monitoring equipment.
Sany SR155-C10 rotary drilling rig parameter configuration
Sany SR155-C10 rotary drilling rig technical parameters
| drilling | |
| Maximum bore diameter | 1500mm |
| Maximum drilling depth (friction rod/lock rod) | 56/44m |
| Power engine head | |
| Rated output torque | 155kN·m |
| speed | 5-35rpm |
| Pressurization system | |
| Add pressure | 155kN |
| Pull up force | 160kN |
| trip | 4200mm |
| Main winding lift | |
| Force of lifting | 160kN |
| Diameter of wire rope | 26mm |
| Maximum speed | 80m/min |
| Secondary roll up | |
| Force of lifting | 60kN |
| Diameter of wire rope | 14mm |
| Maximum speed | 75m/min |
| Angle of mast | |
| Before/after | 5/90° |
| Left/right | ±3° |
| chassis | |
| Model of engine | Mitsubishi D06FRC-TAA |
| Power of engine | 147/2100KW/rpm |
| emissions | COMⅢ |
| displacement | 6.373L |
| Spread width of chassis | 4100mm |
| Width of track | 700mm |
| Tail radius of rotation | 3715mm |
| The host | |
| Height of machine | 18590mm |
| Working weight | 48t |
| Width of transport | 3100mm |
| Height of transport | 3265mm |
Our Services
Why Choose Us?
1. We are a professional and reliable supplier of Construction Piling Machine in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
