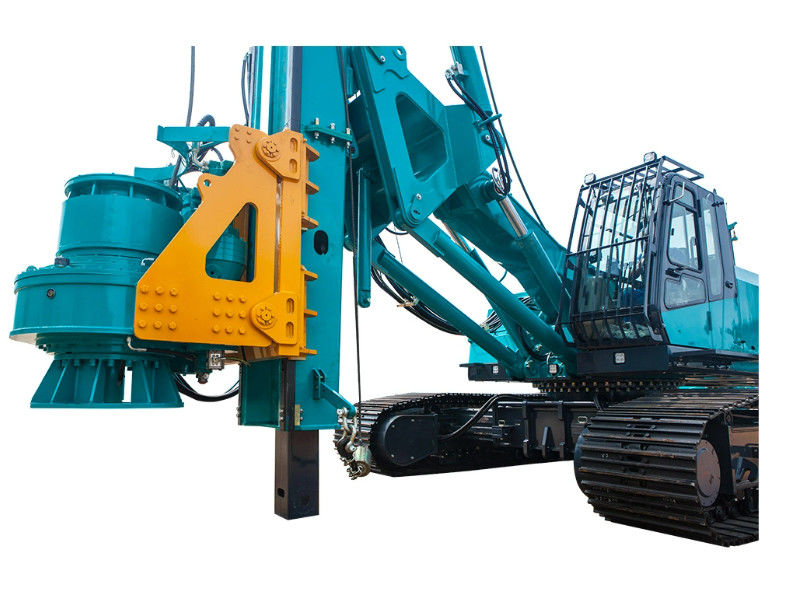

Sunward Swdm160-600W Rotary Drilling Rig
Product Details:
| Brand Name: | Sunward Swdm |
| Model Number: | 160-600W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | Sunward Swdm | Model: | 160-600W |
|---|---|---|---|
| Moving Type:: | Crawler | Color: | Blue |
| After-Sales Service Provided: | Field Installation, Commissioning | Production Capacity: | 100000 Set/Sets Per Year |
| High Light: | PC220 8MO used hydraulic excavators,1.35cbm used hydraulic excavators,10KW construction digger machine |
||
Product Description
| Parameters | |||
|---|---|---|---|
| Overall height | 32.3m | ||
| Total weight | 175t | ||
| Bucket Drilling Method | Max. drilling diameter | 3000mm | |
| Max. drilling depth | 120m | ||
| Engine | Brand | Cummins | |
| Model | QSX15-C600 | ||
| Power | 447kW/2100rpm | ||
| Rotary Power Head | Max. torque | 600kN.m | |
| Rotation speed | 5~22rpm | ||
| Pressurized Systems | Max. applied pressure | 480kN | |
| Max. lifting force | 480kN | ||
| Max. stroke | 9000mm | ||
| Main Winch | Max. lifting force | 580kN | |
| Max. rope speed | 50m/min | ||
| Aux Winch | Max. lifting force | 110kN | |
| Max. rope speed | 55m/min | ||
| Drill Mast | Left and Right tilt | ±4° | |
| Forward tilt | 5° | ||
| Chassis | Max. travel speed | 1.0km/h | |
| Shoe boots length | 9000mm | ||
| Shoe boots width | 900mm | ||
| Chassis width | 5800mm | ||
