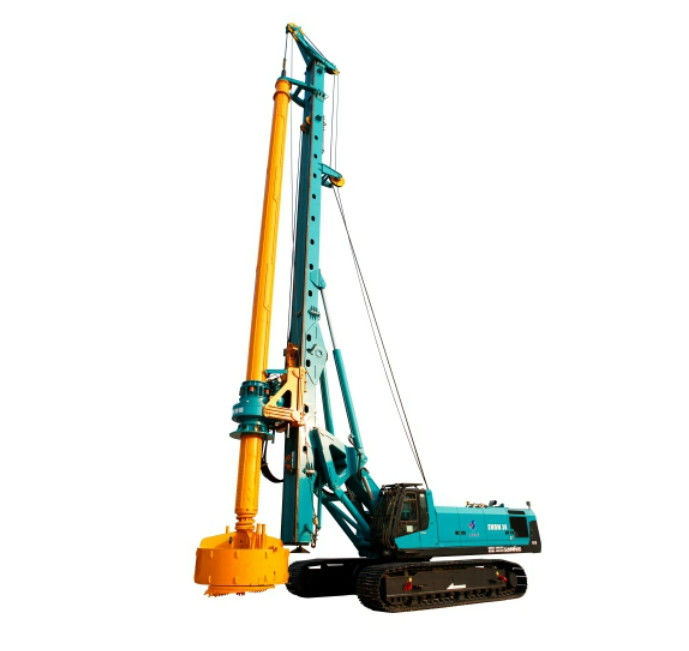

Sunward 100m Depth Hydraulic Piling Machine Swdm 360h-3
Product Details:
| Brand Name: | Sunward |
| Model Number: | 360h-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | Sunward | Model: | 360h-3 |
|---|---|---|---|
| Drill Hole Diameter: | 2500 (3000)mm | Drill Hole Depth: | 102/66m |
| Working Weight: | 132t | Max. Torque: | 418 Kn.M |
| High Light: | 100m Hydraulic Piling Machine,Sunward Hydraulic Piling Machine,Swdm 360h-3 Hydraulic Piling Machine |
||
Product Description
Product Description
Sunward 100m Depth Rotary Drilling Machine SWDM 360H-3 Piling Rig
Product Description
| Model | SWDM300H | SWDM360 | SWDM360H-2 | SWDM360H-3 | SWDM400 | |
| Max. drilling diameter | mm | 2500 | 2500 | 2500 (3000) | 2500 (3000) | 2500 (3000) |
| Max. drilling depth | m | 95/62 | 100/64 | 96/62 | 102/66 | 104/69 |
| Engine power | kw | 298 | 298 | 399 | 399 | 399 |
| Max. torque | kN.m | 320 | 360 | 418 | 418 | 418 |
| Rotation speed | rpm | 6~32 | 6~32 | 6~25 | 6~25 | 6~25 |
| High-speed throwing soil (optional) | rpm | / | / | / | / | / |
| Working weight | t | 105 | 115 | 130 | 132 | 135 |
| Working height | mm | 25130 | 26150 | 25790 | 27200 | 27200 |
