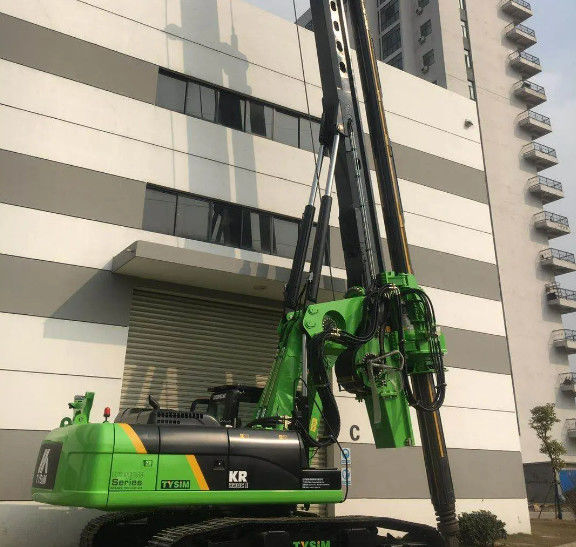

CE Certificated Rotary Hydraulic Piling Machine Torque 220 Kn. M
Product Details:
| Place of Origin: | China |
| Brand Name: | CAT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negitionable |
| Packaging Details: | No packaging |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Brand: | CAT | Max. Diameter: | 1800/2000mm |
|---|---|---|---|
| Max. Crowd Pressure: | 210 Kn | Main Winch Line Pull: | 230 Kn |
| Max. Drilling Depth: | 64/51m | Specification: | 65 T |
| High Light: | CE Hydraulic Piling Machine,220 Kn. M Hydraulic Piling Machine,220 Kn. M Rotary Piling Machine |
||
Product Description
Technical Specification
| Type | KR220C |
| Torque | 220 KN.m |
| Max. diameter | 1800/2000 mm |
| Max. drilling depth | 64/51 m |
| Speed of rotation | 5~26 rpm |
| Max. crowd pressure | 210kN |
| Max. crowd pull | 2200 kN |
| Main winch line pull | 230kN |
| Main winch line speed | 60m/min |
| Auxiliary winch line pull | 90kN |
| Auxiliary winch line speed | 60m/min |
| Stroke(crowd system) | 5000mm |
| Mast inclination(lateral) | ±5° |
| Mast inclination(forward) | 5° |
| Max. operating pressure | 35 MPa |
| Pilot pressure | 4 MPa |
| Track shoe width | 800 mm |
| Operating height | 21082 mm |
| Operating width | 4300mm |
| Transport height | 3360mm |
| Transport width | 3000mm |
| Overall weight | 65 t |
