8 Module Hydraulic Pile Breaker 750mm-870mm Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | Heli |
| Model Number: | Hydraulic Pile Breaker |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negitionable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Name: | Hydraulic Pile Breaker | Number Of Module: | 8 Module |
|---|---|---|---|
| Combination Total Weight: | 2800kg | Pile Diameter Range: | 750-870mm |
| Hydraulic Excavator: | 20T-30T | Max.Thrust: | 800KN |
| High Light: | 8 Module Hydraulic Pile Breaker,870mm Hydraulic Pile Breaker,750mm Hydraulic Pile Breaker |
||
Product Description

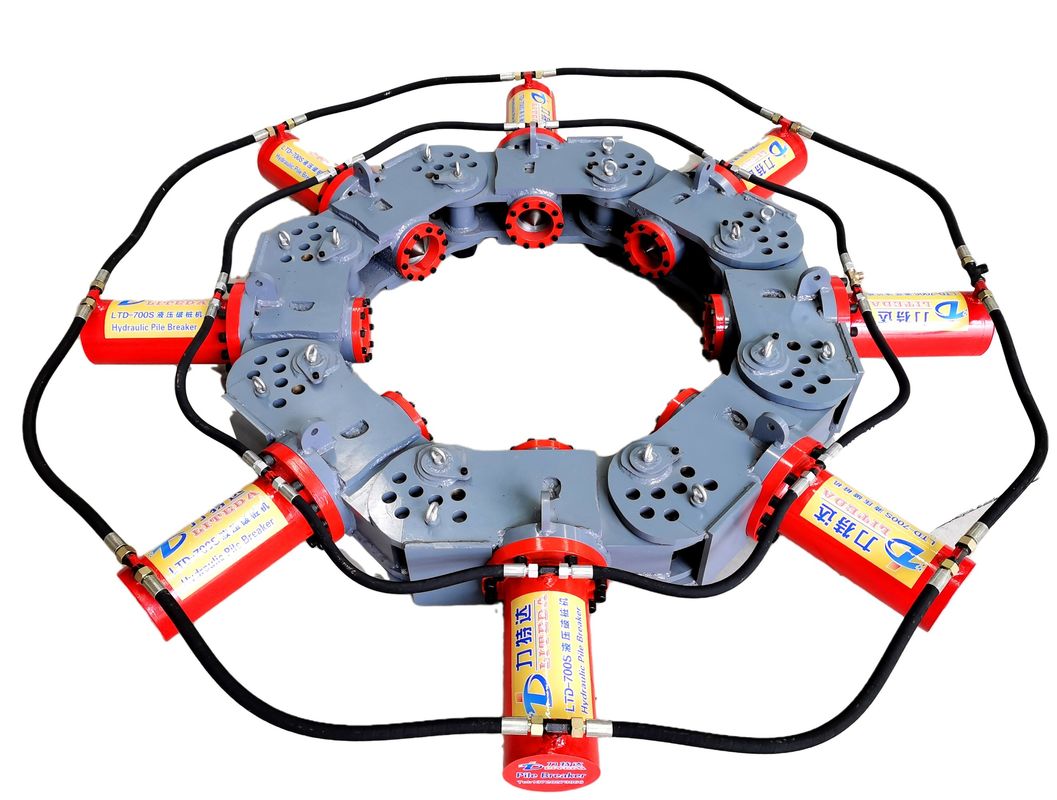

8 Module Hydraulic Pile Breaker
Hydraulic Pile Breaker can break such like cast-in-place piles, precast piles, etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker
Parameters of hydraulic pile breaker
| Number of Module | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination total weight | KG | 1400 | 2800 | 3150 | 3500 | 3850 | 4200 | 4550 | 4900 | 5250 | 5600 | 5950 | 6300 |
| Pile diameter range | mm | 400-700 | 750-870 | 800-1030 | 1000-1200 | 1200-1360 | 1360-1535 | 1500-1700 | 1700-1865 | 1865-2025 | 2000-2200 | 2200-2360 | 2300-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T/Hydraulic system | ||||||||||
| Max.Thrust | 800KN | Max. Cylinder required |
80T | Machinery Tonnage | ≥20T | Location pin Φ35 |
|||||||
| Max. Cylinder Trip |
300mm | Chisel diameter | 110mm | Single module weight |
330KG | ||||||||
| Max. Cylinder Pressure |
300MPa | Max. Hoist Capacity |
≤500mm | Single module size |
1015*865*410mm | ||||||||
Advantage
- Hydraulic pile breaker, high efficiency, low noise pile cutting.
- Modularization: cutting pile heads of different diameters can be realized by combining different numbers of modules.
- Cost-effective, low operating cost.
- The operation of pile breaking is simple, no professional skills are required, and the operation is quite safe.
- Hydraulic Pile Breaker can be connected with a variety of construction machinery to truly achieve the universality and economy of the product.Can be hung on excavators, cranes, telescopic boom and other construction machinery.
- The design of high life brings benefits to customers.
- The conical top design avoids the accumulation of soil in the guide flange, avoiding the problem of steel stuck, deviation and easy to fracture;
- The steel drill that rotates at any time effectively prevents the vibration in the high pressure cylinder, prevents the fracture of the connection, and has the effect of earthquake resistance
If you are interested in our hydraulic pile breaker, please tell us
Pile Type ( ) round or square
pile diameter ( mm )
grade of concrete ( )
concrete reinforcement arrangement ( )
Excavator tonne ( )
We will introduce suitable model to you.
